elna eXtend 864 Air Threading Serger Machine

Compare to Janome AT2000D Air Thread Serger Machine.

Machine Manual

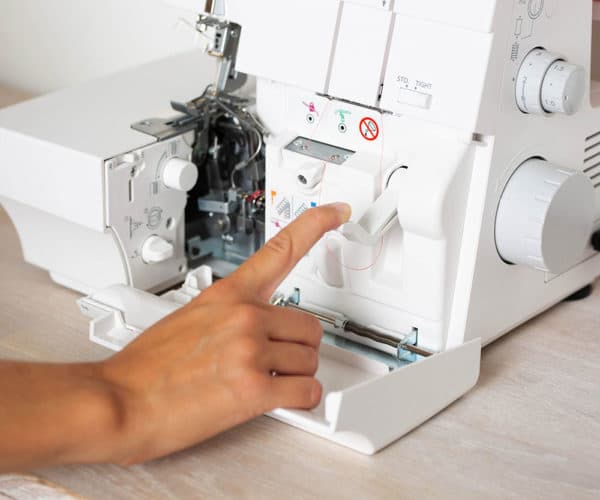

The new air threading system on the Elna Extend 864 Air Thread Serger makes it effortless to thread your machine. A time-saving feature for tangle-free sewing. Built to last the Elna Extend 864 Air Thread Serger is larger than traditional sergers. With a wide range of accessories available, the Elna Extend 864 Air Thread Serger is one you will not outgrow anytime soon.

Main Features

• Air threading system
• 2/3/4-thread overlocking
• Built-in needle-threader
• Adjustable differential feed
• 5-level presser foot pressure dial
• 8-piece feed dog system
• Built-in 2-thread converter
• Built-in thread cutter
• Maximum sewing speed adjustable up to 1’300 spm

Basic Features

• Machine size W347 × H299 × D284 mm
• Machine weight 7.9 kg
• Bed type Flat-bed
• Color-coded threading routes x
• Needle threader Built-in
• Thread cutter Built-in
• Feed dog 8 pcs.
• Foot pressure adjustment Dial - 5 positions
• Clip-on presser foot system x
• Instant rolled hem device x
• Presser foot height 5.5 mm
• Thread tension control Manual
• Upper looper threader / Lower looper threader
• Lighting 1 built-in white LED lamp in 1 location
• Safety device Looper cover / Side cover / Presser foot lifter
• Telescopic thread antenna x
• 2-thread converter Built-in
• Number of spool pins 4
• Carrying handle Integrated
• 4-thread programs overlock, stretch knit, decorative overedging, gathering
• 3-thread programs overlock regular and wide, rolled hem, narrow hem, picot hem, flatlock, pintuck
• 2-thread programs flatlock, rolled hem
• Number of threads 2/3/4 threads
• Number of needles 1/2 needles
• Standard stitch length 1 to 5 mm
• Adjustable differential feed 0.5 to 2
• Upper knife opening 10 mm
• Adjustable cutting width using left needle not using left needle 5.5 to 7.5 mm / 3.3 to 5.3 mm
• Maximum speed 1'300 spm
