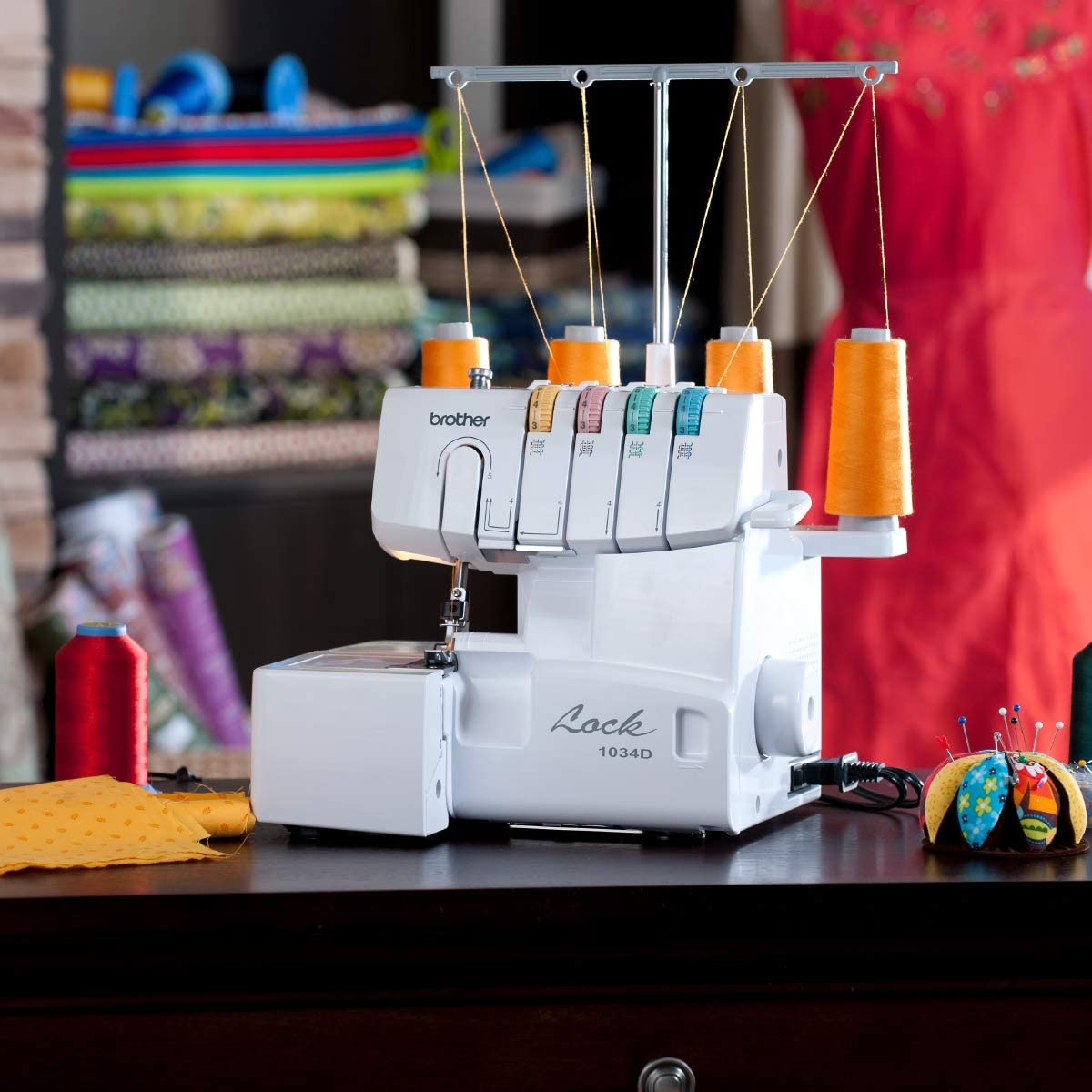

Brother 1034D OverLock Serger Machine

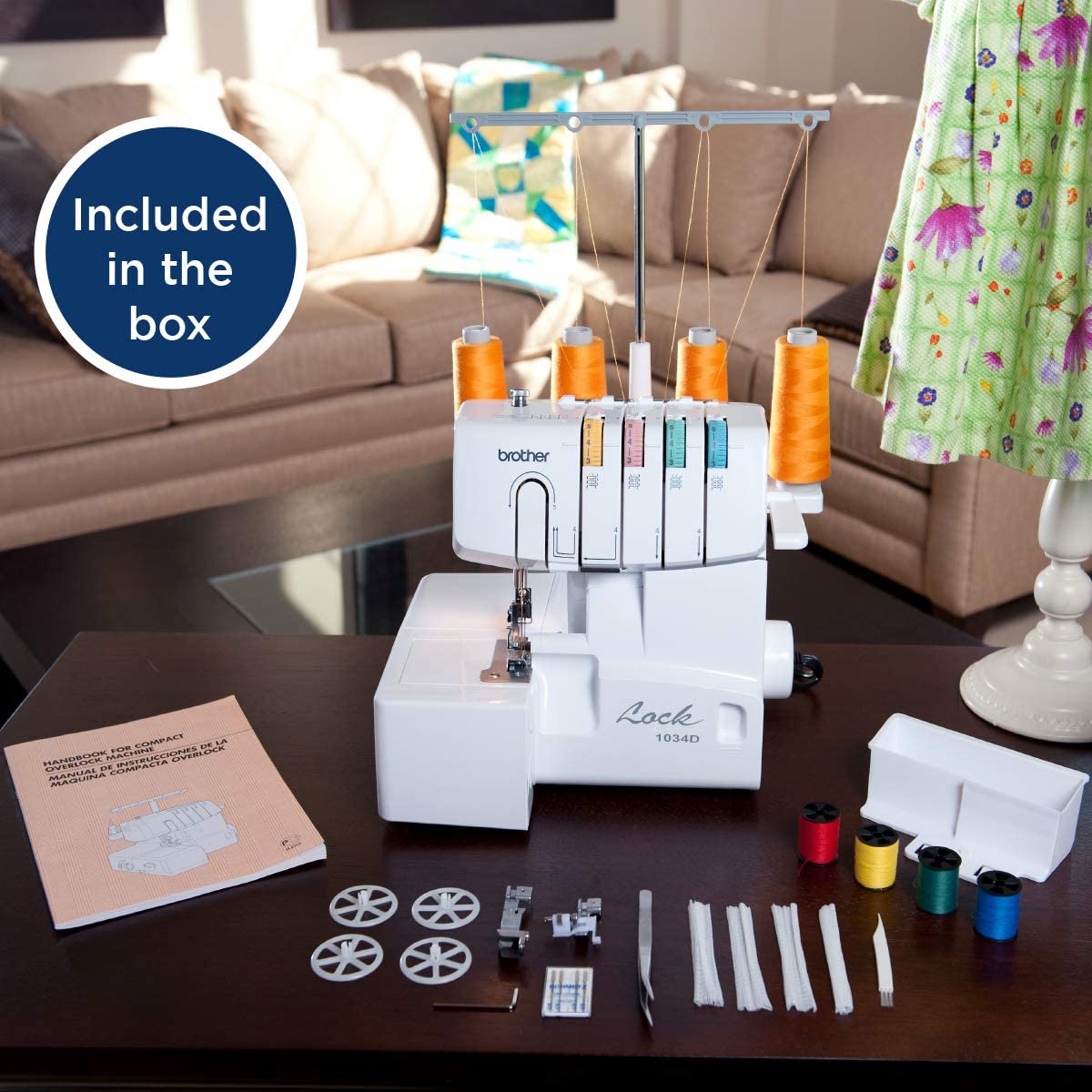

Designed for finishing the edges and hems of a wide range of fabrics, including formal wear, linens and stretchy fabrics, and for creating ruffles and decorative edges, the Brother 1034D Serger is the perfect addition to any sewing room. This reliable, easy to learn and use 3/4 thread serger features snap-on, interchangeable creative feet. Stitch options include 4 thread overlock, 3 thread overlock, narrow hem, rolled hem, and ribbon lock stitches. With its differential fabric feed, the 1034D helps you achieve better stitch quality, for a more even, professional finish, even on very thin or stretchy fabrics. Threading is easy, with the color-coded upper thread guides and lower looper threading system. Plus, the included snap-on presser feet allow for quick and easy changes to transition to each desired stitch. To help you get started, the 1034D comes completed with a printed English and Spanish operational manual.

Machine Manuals
Call for More Information: (580)765-9999

Main Features

3/4 Thread Serger • Efficient Serging
Color-Coded Threading• Popular OverLock Serger Comparison

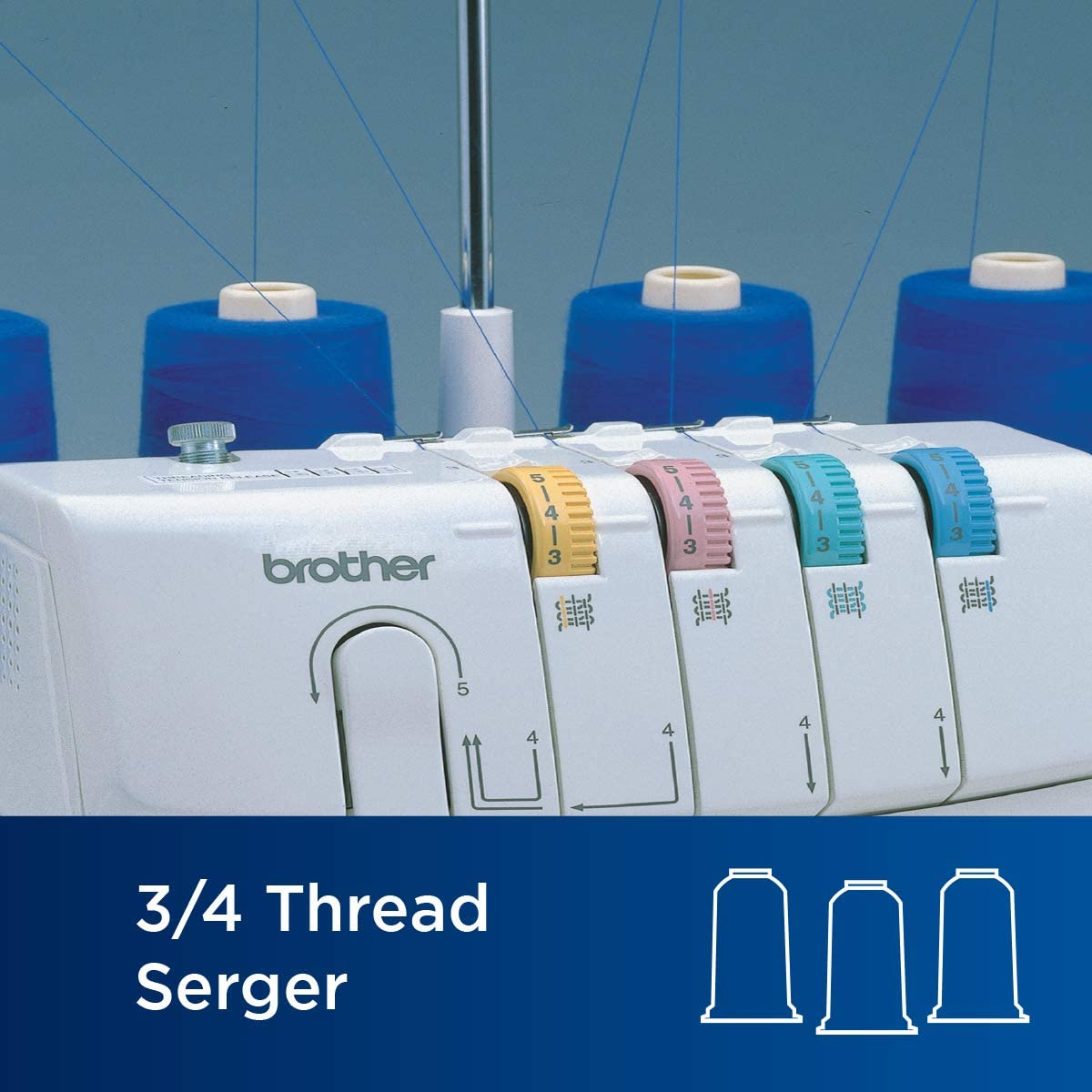

3/4 Thread Serger

Versatile stitch options allow you to choose from 4 thread overlock, 3 thread overlock, narrow hem, rolled hem, and ribbon lock stitches. 2-point thread tension control device allows for smoother delivery of thread, and the tension for each needle can also be individually adjusted, for even more precise control for each type of thread.

Efficient Serging

Get more serging done in less time by sewing up to 1300 stitches per minute. The stitch width can be easily adjusted between 3.00mm to 7.00mm, helping to provide the perfect stitch width for your project. Uses standard sewing machine needles and includes a free arm for sewing cuffs and sleeves. Includes differential fabric feed for better stitch quality.

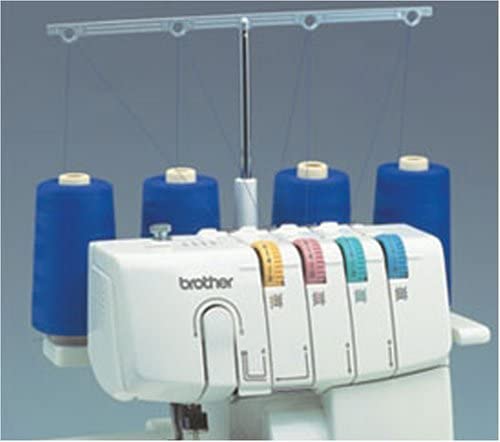

Color-Coded Threading

Easy to follow, color-coded lay-in threading, and the lower looper threading system is designed to make sure the thread stays right in place.

Popular OverLock Serger Comparison Chart

	JUKI MO-50E	JUKI MO-623	Brother 1034D	Singer S14-78
Brand	JUKI	JUKI	Brother	Singer
Machine Type	OverLock Serger	OverLock Serger	OverLock Serger	OverLock Serger
Dimensions	11.5"(W) x 11.6"(D) x 11.4"(H)	10.6"(W) x 11.5"(D) x 13.5"(H)	11.73"(W) x 10.98"(D) x 13.19"(H)	13.1"(W) x 11.25"(D) x 11"(H)
Weight	14.7lbs	15lbs	15.4lbs	13.8lbs
Maximum Sewing Speed	1,300 SPM	1,500 SPM	1,300 SPM	1,300 SPM
Number of Threads	3/4 Threads	2/3 Threads	3/4 Threads	2/3/4 Threads
Number of Needles	1/2 Needles	1 Needle	1/2 Needles	2 Needles
Differential Feed Ratio	0.8 - 2.0	0.7 - 2.0	0.7 - 2.0	0.7 - 2.0
Max Stitch Length	4mm	4mm	4mm	4mm
Max Stitch Width	Left: 6mm, Right: 4mm, Rolled Hem: 2mm	OverLock: 4mm, Rolled Hem: 2mm	7mm	Left: 7mm, Right: 5mm
Max Presser Foot Lift	6mm	5mm	6mm	7mm
Lower Looper Threader	Yes	Yes	Yes	Yes
Presser Foot Pressure Adjustment	No	No	Yes	Yes
Automatic Rolled Hemming	Yes	Yes	No	Yes
Adjustable Thread Tension	Yes	Yes	Yes	Yes
Retractable Upper Knife	Yes	Yes	Yes	Yes
Adjustable Lower Knife	Yes	Yes	Yes	Yes
Waste Collector	Yes	No	Yes	No
Knee Lifting Lever	No	No	No	No
Free Arm	No	No	Yes	Yes
