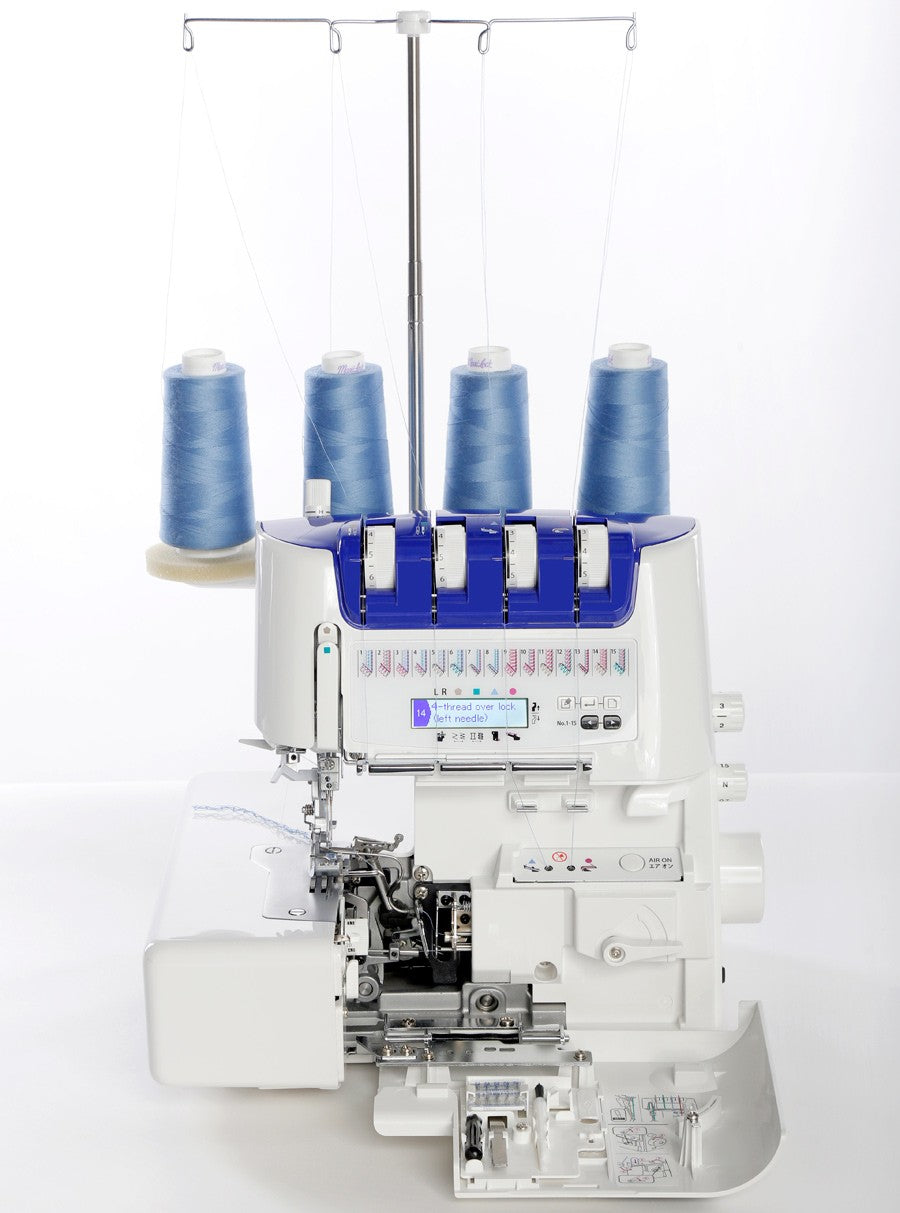

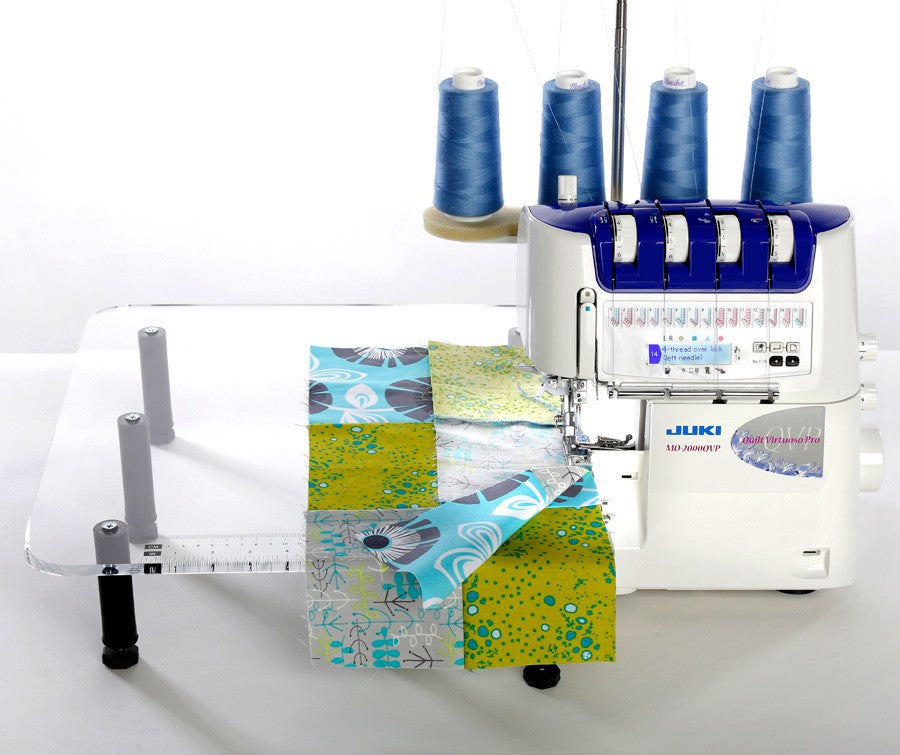

JUKI MO-2000QVP Air Threader Overlock Serger Machine

Machine Manual

Effortless threading with the power of the air is found on JUKI's MO-2000QVP serger! From stretchy sportswear to flowy dresses, creating new pieces is enjoyable with the MO-2000QVP! Have the MO-2000QVP set up in seconds with automatic needle threaders and air threading for the loopers. It can't get any easier than that. Experience simplified serging with an informational LCD screen that offers easy set-up instructions including tension settings for 15 different stitches at a glance. No more searching through pages of your manual! Looking for more features? The MO-2000QVP is equipped to gather stretched fabrics such as knits and georgette with differential feed and sew rolled hemming for beautiful finishes on handkerchiefs. The search for the perfect serger is over with the MO-2000QVP.

Main Features

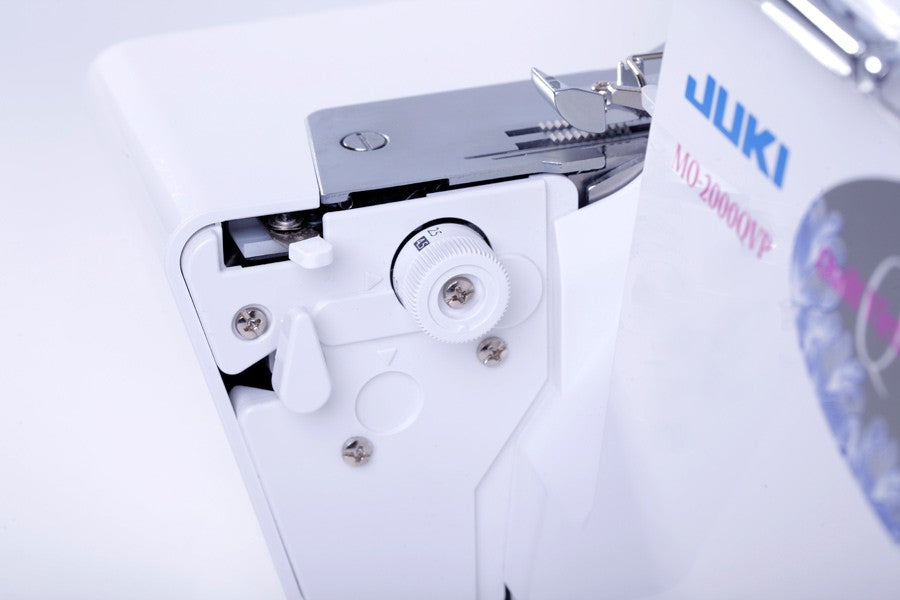

Adjustable Differential Feed
Even with easily stretched fabrics such as knits and georgette, create beautifully sewn finishes by adjusting the differential feed. Adjustments can be made while sewing.

Beautiful Sharp Curve
The distance between the needle and knife is 9.95mm(conventional model: 15.5mm), allowing you to sew beautiful inside curves.

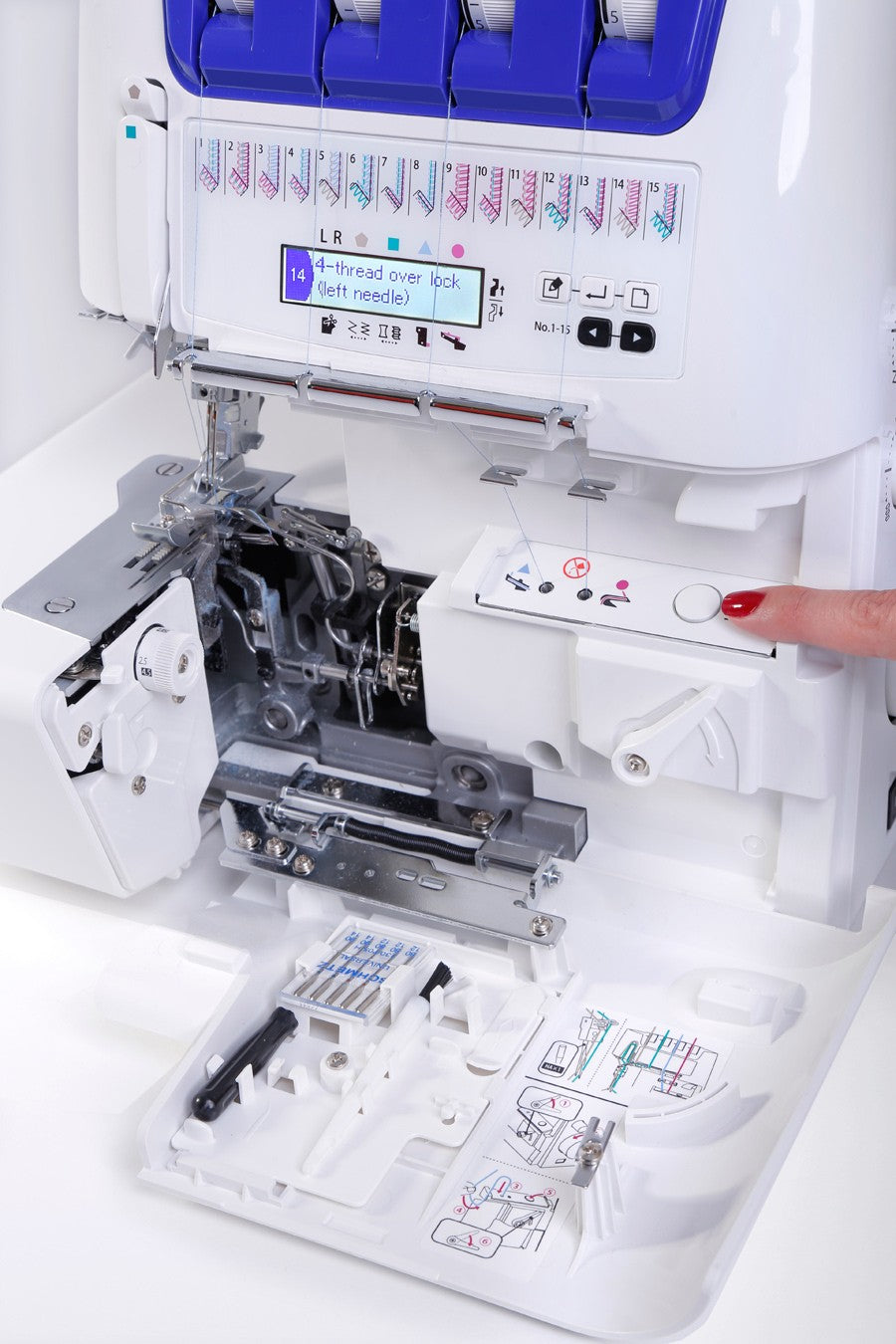

Upper Looper Converter 2-/3-Thread Conversion
Switch to 2-thread sewing simply by pushing the 2-/3-thread changeover attachment to the left, making this operation even easier.

Wide Throat Area
The height of the throat is 72.4mm. Due to this height, the usability of the work space improved infinitely.

Quiet Operation
The sound reducing design minimizes the operating noise and the unit sews with less vibration.

LED Sewing Light
The needle area is brightly illuminated. The long-life, energy-efficient and eco-friendly light will not heat up, event after a long period of use.

Waste Collector
Provided as a standard accessory, the waste collector catches cut-off fabric and is useful for keeping the area tidy.

Basic Features

• Number of Needles: 1/2 Needles
• Needle: SCHMETZ 130/705 H or JLx2
• Number of Threads: 2/3/4 Threads
• Differential Feed: 0.7-2.0 Ratio
• Sewing Speed: Maximum 1,500 spm

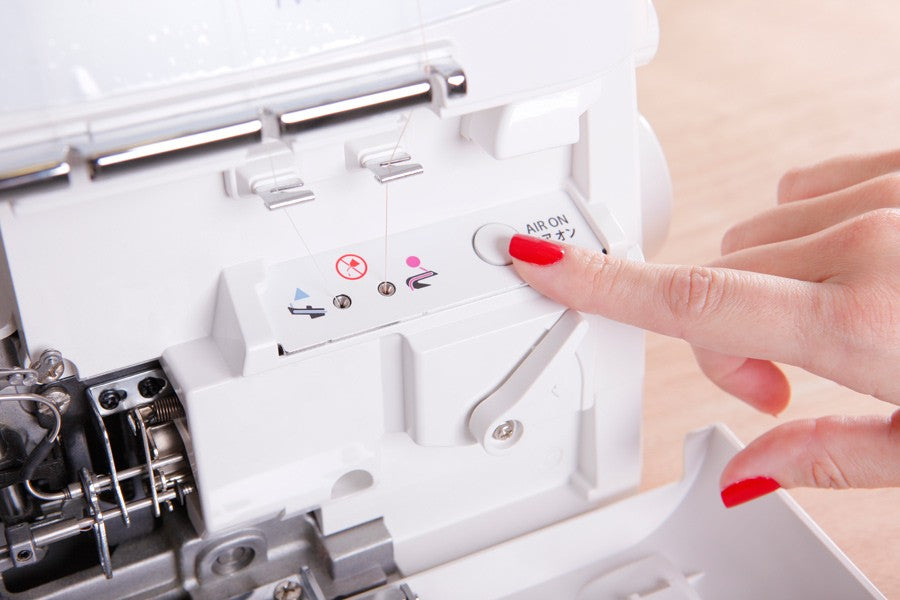

• Easy Threader: Press of Button for Loopers & Left and Right Needle Threader
• Presser Foot Lift: 0.2" (5mm) Max: 0.3" (8mm)
• Stitch Length: .03" - .2" (1-4mm)
• Overlocking Width: Left Needle 0.2" - 0.4" (5-9mm), Right Needle 0.1" - 0.3" (3-7mm), Rolled Hem 0.08" (2mm)

Accessories

• Needle set 130/705H(SCHMETZ)
• Screwdriver
• Tweezers
• Brush
• Needle inserter
• Electronic foot control
• Nets
• Spool caps
• Looper threader
• Accessory bag
• Dust cover
• Waste collector
• Oiler
• Operation support DVD

Dimensions

• 13"(W) x 11"(D) x 12.2"(H) (330mm x 280mm x 310mm)
• Weight: 20lbs (9Kg)

JUKI Air Threading Serger Comparison Chart

	MO-1000	MO-2000QVP	MO-2800	Akane MO-3000QVP
Machine Type	Air Threading Serger Machine	Air Threading Serger Machine	Air Threading Serger Machine	Air Threading Serger Machine
Dimensions	13”(W) x 11”(D) x 12.25”(H)	13"(W) x 11"(D) x 12.2"(H)	13.75"(W) x 12.2"(D) x 13.4"(H)	13.8"(W) x 12.2"(D) x 13.4"(H)
Weight	20lbs	20lbs	22lbs	25lbs
Max Sewing Speed	1,500 spm	1,500 spm	1,500 spm	1,500 spm
Number of Threads	2/3/4 Threads	2/3/4 Threads	2/3/4 Threads	2/3/4 Threads
Number of Needles	1/2 Needles	1/2 Needles	1/2 Needles	1/2 Needles
Differential Feed Ratio	0.7 - 2.0	0.7 - 2.0	0.7 - 2.0	0.7 - 2.0
Max Stitch Length	4mm	4mm	4mm	4mm
Max OverLock Width	9mm	Left: 9mm, Right: 7mm Rolled Hem: 2mm	Left: 7.5mm, Right: 5.5mm Rolled Hem: 2mm	Left: 7.5mm, Right: 5.5mm Rolled Hem: 2mm
Max Presser Foot Lift	8mm	8mm	8mm	8mm
Lower Looper Threader	Air Threaded	Air Threaded	Air Threaded	Air Threaded
Adjustable Presser Foot Pressure	Yes	Yes	Yes	Yes
Adjustable Thread Tension	Yes	Yes	Yes	Yes
Retractable Upper Knife	Yes	Yes	Yes	Yes
Adjustable Lower Knife	Yes	Yes	Yes	Yes
Automatic Rolled Hemming	Yes	Yes	Yes	Yes
Chain-off Thread Cutter	No	No	No	Yes
Automatic Thread Supply System	No	No	No	Yes
Waste Collector	Yes	Yes	Yes	Yes
Knee Lifting Lever	No	No	Yes	Yes
