JUKI TL-15 High Speed Straight Stitch Sewing and Quilting Machine

The JUKI TL-15 is a single needle, lockstitch, portable machine, constructed of aluminum die-casting to ensure industrial-quality sewing. A high-performance wonder, these stitches are even and consistent. Although it is considered a home machine, the Juki TL-15 is truly a professional quality quilting machine with a heavy-duty motor much like those seen in commercial machines. With advanced features, such as an industrial sub-tension system, variable speed control slider, and bright white LED lighting, this machine is built for precision sewing. With a large work area of up to 23 inches (with auxiliary table attached), the TL-15 can handle large quilt, sewing or home decor project with ease. Quilts can be made on any sewing machine; however, if you want a better, easier sewing experience that ends in beautifully professional results, then a professional-quality quilting machine is what you need.

Recognized by many as an exceptional quilting machine, the Juki TL-15 offers the space, control, and visibility that sewists need when working on quilts to improve the free-motion quilting experience. Juki has included features on the TL-15 to make sewing easier, such as a predetermined need stop position when the machine stops sewing, a regulator to adjust the pressure of the presser foot, easy-to-use replacement of the bobbin, and auto threading of the needle. The automatic thread cutter feature makes piecing a quilt together easier and faster, since you will never have to stop to cut them manually. For ease of use, there is a knee lever that can be used to lift the presser foot to free up your hands for maneuvering fabric. The Juki TL-15 comes with numerous accessories, including several presser feet, Foot Switch Stopper, Quilt Guide for Upper Feed Presser Foot, Quilting Foot Front Open Toe, an auxiliary table, a large extension table, the lever to lift the presser foot hands-free, and the foot controller.

Machine Manual • JUKI TL Series Machines and Accessories

Main Features

Industrial Quality Build
Automatic Thread Trimmer • Automatic Needle Threader
Easy Bobbin Replacement • Knee Lifter Lever
Presser Foot Pressure Adjustment • Needle Up/Down Control

Industrial Quality Build

What's inside the JUKI TL-15?

Cast aluminum housing. Strength and durability by design	Removable plastic lower housing for access, facilitate easier servicing when needed.	Power and synchronization are provided via brushless DC motor for power (torque) and durability and cog belts (avoids belt stretch and slipping related issues and improves control)
All shafts supported in bearings mounted or incorporated into the cast aluminum frame.	All shafts supported in bearings mounted or incorporated into the cast aluminum frame.	Electronics mounted in plastic housing. (Reduces vibration and static charge from being mounted to metal where moving metal parts create friction)

Automatic Thread Trimmer

The machine is equipped with an automatic thread trimming device that simultaneously cuts the needle and bobbin threads at the sewing end by lightly pressing the push-button. It uses the thread trimming mechanism that is similar to the industrial sewing machine type.

Automatic Needle Threader

The push lever automatic needle threader easily threads the needle without eyestrain and allows you to start sewing quickly.

Easy Bobbin Replacement

A new bobbin case latch and an enlarged bobbin case area make it easier to remove and replace the bobbin.

Knee Lifter Lever

The knee lifter lever allows you to lift / lower the presser foot without using your hands.

Presser Foot Pressure Adjustment

Presser foot pressure can be adjusted according to the fabric being sewn by turning a regulator located on the top of the machine.

Needle Up/Down Control

The machine will stop the needle in the down position when you stop sewing to allow pivoting action or more accurate free motion work. The needle can be moved up and down with the simple push of a button.

Basic Features

LED light
Sliding speed control
One pedal foot control
Sews heavy-weight materials with ease
Predetermined stop position of the needle
1/4" foot and free action foot
Adjustment of foot pressure according to material weight
Thread tension scale
Automatic stop-bobbin winding
Portable sewing machine
Automatic thread trimmer
For tailoring, quilting, dressmaking, and many other applications
1500 stitches per minute
Stitch length 6 mm
Universal presser foot tape ribbon narrow elastic application
Presser foot lift 7 mm by hand
Knee lifter 12 mm extra lift

Included Accessories

Dimensions

Throat Area: 8.5(L)x 5.9 (H) inches
Auxiliary table included: dimensions 590 mm x 277 mm (12 x 23)
Weight 25.4 lbs

JUKI TL Series Comparison Chart

	TL-2000QI	TL-2010Q	TL-15	TL-18QVP	TL-18QVP-COL
Machine Type	High Speed Straight Stitch Sewing Machine	High Speed Straight Stitch Sewing Machine	High Speed Straight Stitch Sewing Machine	High Speed Straight Stitch Sewing Machine	High Speed Straight Stitch Sewing Machine
Shank Type	High Shank	High Shank	High Shank	High Shank	High Shank
Weight	25lbs	25lbs	25lbs	25lbs	25lbs
Stitches	Straight Stitch Only	Straight Stitch Only	Straight Stitch Only	Straight Stitch Only	Straight Stitch Only
Frame	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
Throat Space	8.5" x 6"	8.5" x 6"	8.5" x 6"	8.5" x 6"	8.5" x 6"
Max Stitch Length	6mm	6mm	6mm	6mm	6mm
Needle Up & Down	Yes	Yes	Yes	Yes	Yes
Float Function	No	No	No	Yes	Yes
Sub Tension Unit	No	Yes	Yes	Yes	Yes
Speed Control	No	Yes	Yes	Yes	Yes
Drop Feed	Yes	Yes	Yes	Yes	Yes
Needle Threader	Yes	Yes	Yes	Yes	Yes
Extension Table	Yes	Yes	Yes	Yes	Yes
Attached Mounting Plate	No	No	No	Yes	Yes
Vertical Hook Rotary	Yes	Yes	Yes	Yes	Yes
Premium Platinum Finish	No	No	No	No	Yes
Platinum Sewing Laser	No	No	No	No	Yes
Stitch Plate In Inches	No	No	No	No	Yes

Recommended Accessories

EB-1 Automatic Buttonhole Maker Elevate your garment creations with the EB-1! Whether you're creating a chic dress or stylish shirt, the EB-1 will give your creations the perfect finishing touch.	DS19-J 19" Gray Machine Luggage Luggage designed specifically for JUKI machines. Extremely durable Grey chenille fabric with embroidered JUKI logo. Includes sturdy ball-bearing wheels, steel frame construction, and interior stabilizer strap.	Tabletop Fabric Frame The JUKI Tabletop Fabric Frame allows you to quilt, sew, and stitch to your heart’s content in a much easier way, managing your fabric for you so you can enjoy the process more.

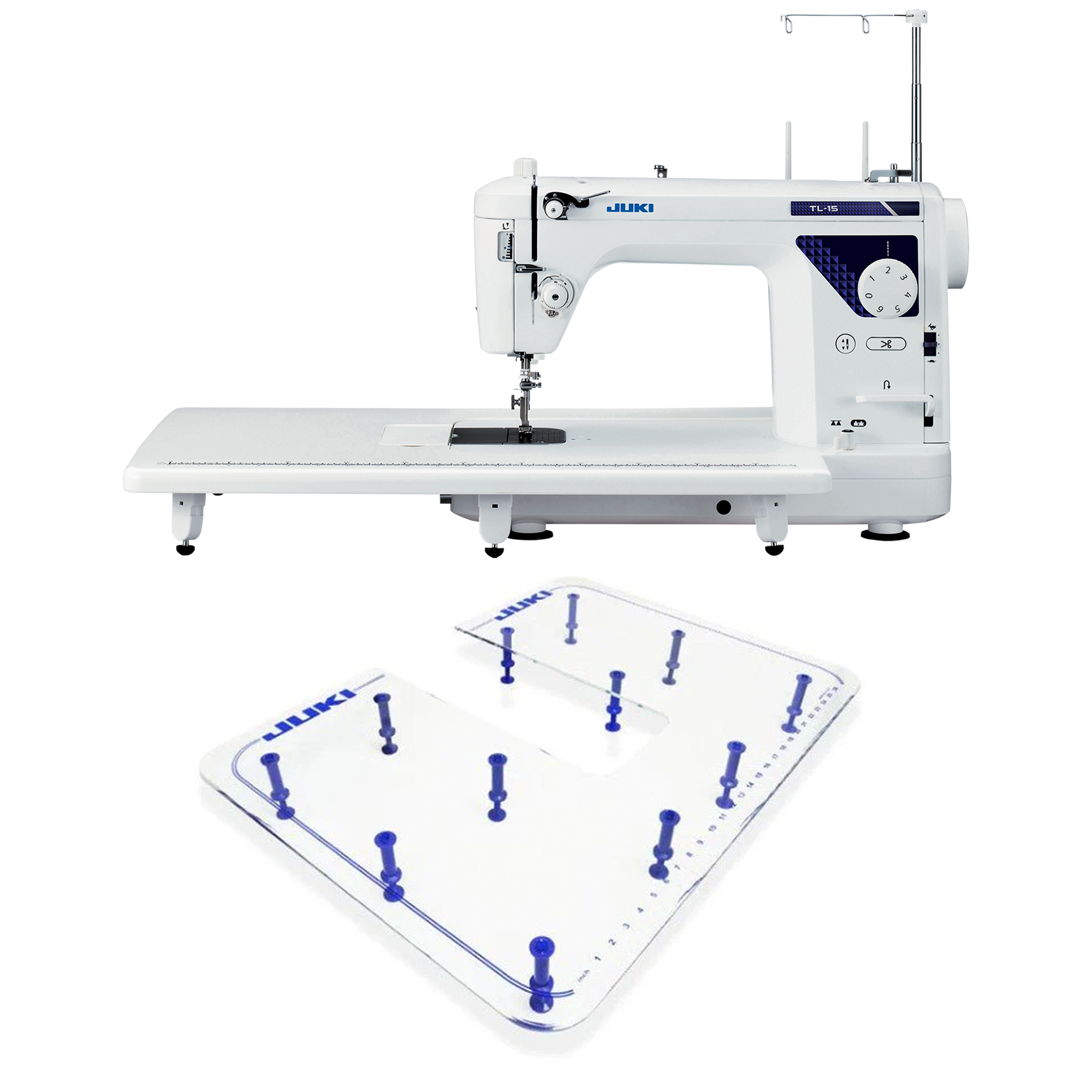

J-2000TABLE Free Motion Sewing Table This table is used for free-motion sewing when the sewing machine is positioned longitudinally. Table Dimensions are: 32″ wide and 24″ long.	40233374 38mm Double Fold Bias Binder With this binder, the sewing machine is able to double-fold the 38-mm wide bias tape into approximately 10.5-mm wide tape to bind the material edge.	A9851D250A0 TL Series Metal Bobbins This pack of five high-quality metal bobbins is designed specifically for JUKI TL Series sewing machines. These bobbins ensure smooth and consistent thread release, which is essential for precise and uninterrupted sewing.
