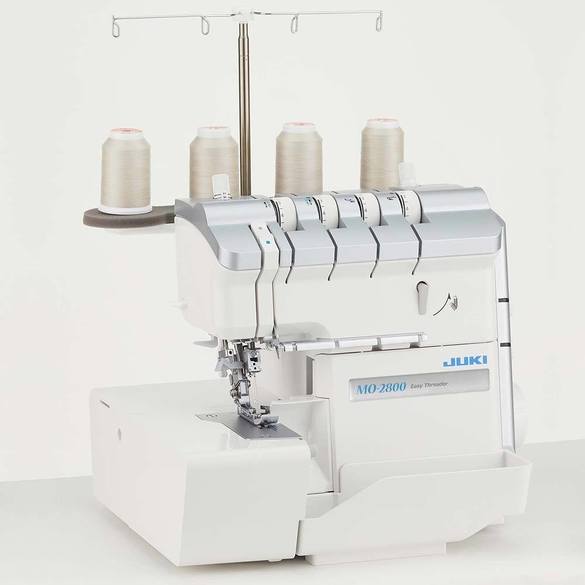

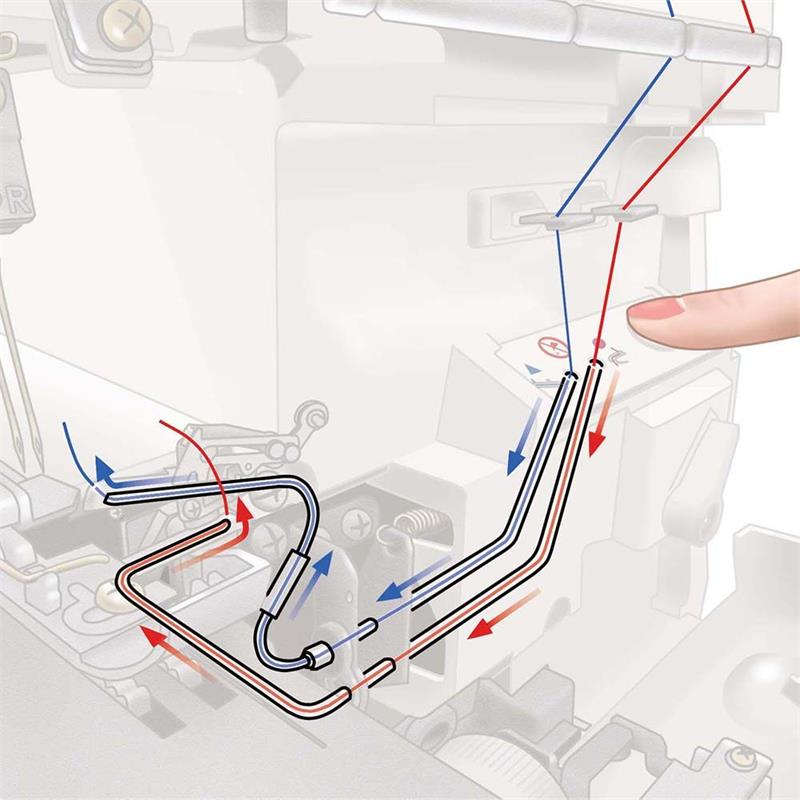

We are honored to introduce to you, the new JUKI MO-2800; the 2-needle, 2/3/4 thread overlock with easy threader, and differential feed. The MO-2800 is equipped with air threading which easily threads the machine from the threading hole to the looper with the power of a strong whoosh of air sent from the electric motor. See below for new state-of-the-art features included in the new MO-2800.
Main Features

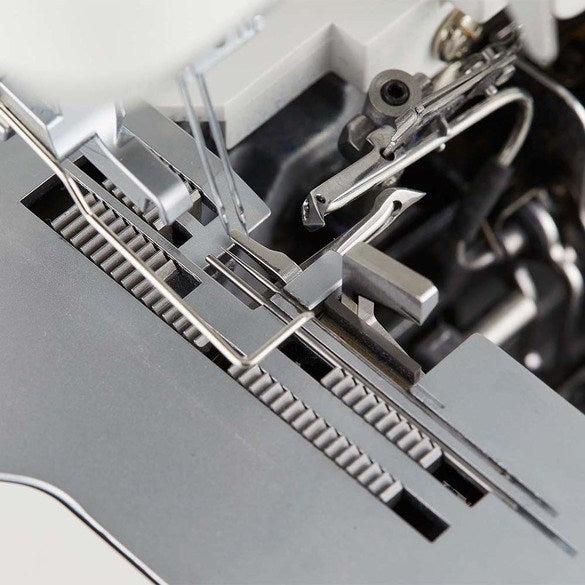

Curve Foot

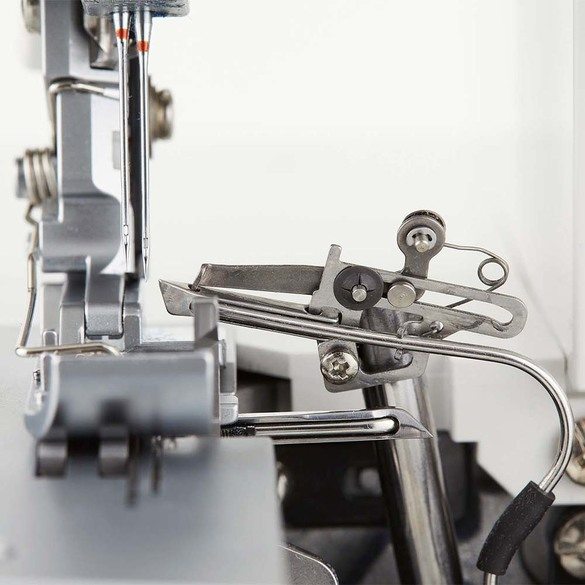

The Curve Foot creates beautiful inner curves. The distance between the knife and the needle is 9.95mm, the industry's smallest knife to needle distance.

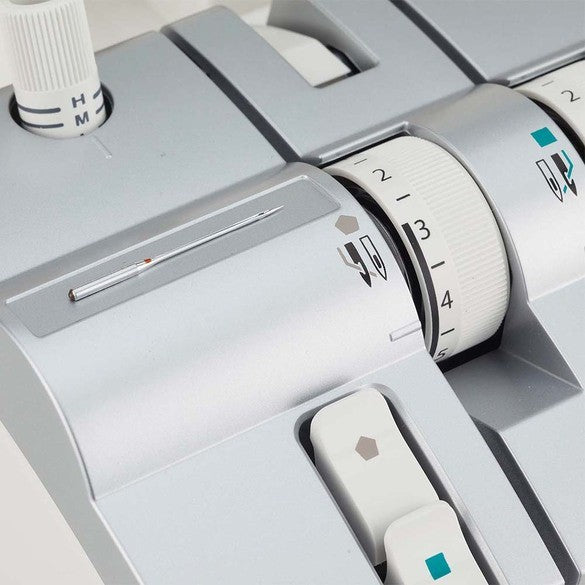

Magnet Needle Tray
Useful to temporarily place a needle when changing.
Easy Roll Hemming

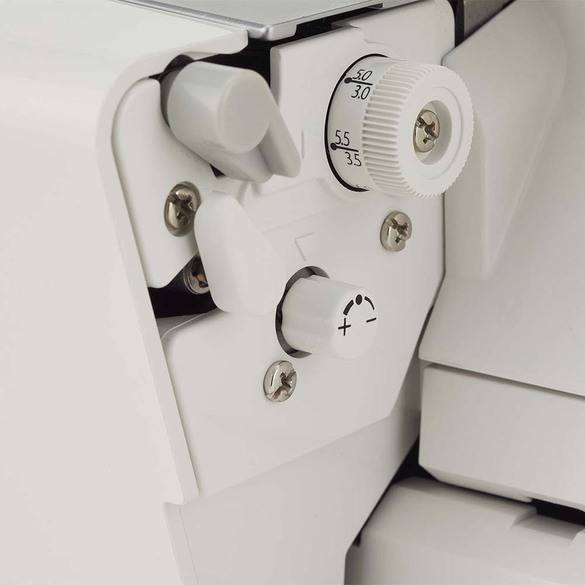

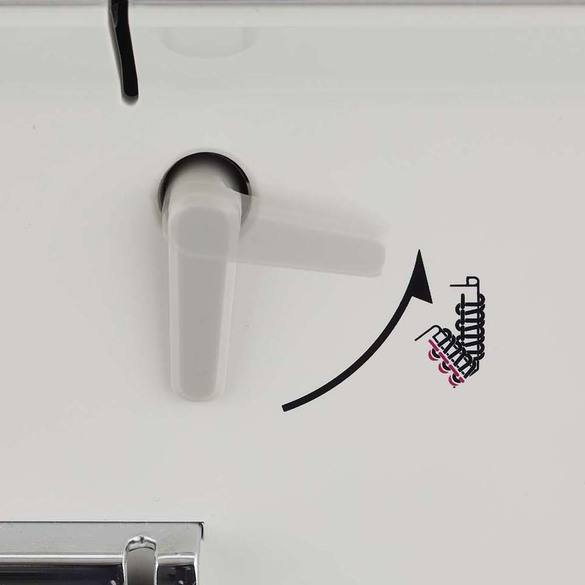

Thread tension that is suitable for roll hemming can be accomplished by lifting the roll hemming thread tension lever. Simply raise the selection lever for overlock or roll hemming and set the cutting width adjusting dial to 2.5 to 3.5 which allows the sewing machine to perform roll hemming.

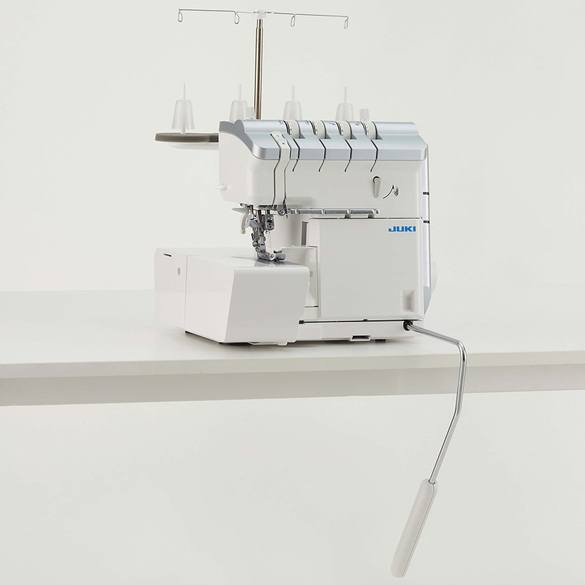

Knee Lifting Lever
The presser foot can be lifted to 6mm at the maximum to ensure easy placement and remove the material. *Maximum height of the presser foot by hand is 8mm.
Basic Features
- Adjustable presser foot pressure
- Option to deactivate upper knife
- Quiet operation
- 2-/3- thread conversion
- Adjustable differential feed
- 68mm (2.66") throat height
- Safety feature preventing operation when the presser foot is in upper position or cover is open
- Thread trimming blade for easy thread cutting
- Included Attachments
- Foot controller
- Knee lifting lever
- Waste collector
- Multi-purpose foot
- Soft cover
- Detailed Instructon Manual
JUKI Air Threading Serger Comparison Chart
|
MO-1000
|
MO-2000QVP
|
MO-2800
|
Akane MO-3000QVP
|
| Machine Type |
Air Threading
Serger Machine |
Air Threading
Serger Machine |
Air Threading
Serger Machine |
Air Threading
Serger Machine |
| Dimensions |
13”(W) x 11”(D) x 12.25”(H) |
13"(W) x 11"(D) x 12.2"(H) |
13.75"(W) x 12.2"(D) x 13.4"(H) |
13.8"(W) x 12.2"(D) x 13.4"(H) |
| Weight |
20lbs |
20lbs |
22lbs |
25lbs |
Max
Sewing Speed |
1,500 spm |
1,500 spm |
1,500 spm |
1,500 spm |
Number of
Threads |
2/3/4 Threads |
2/3/4 Threads |
2/3/4 Threads |
2/3/4 Threads |
Number of
Needles |
1/2 Needles |
1/2 Needles |
1/2 Needles |
1/2 Needles |
Differential
Feed Ratio |
0.7 - 2.0 |
0.7 - 2.0 |
0.7 - 2.0 |
0.7 - 2.0 |
Max Stitch
Length |
4mm |
4mm |
4mm |
4mm |
Max OverLock
Width |
9mm |
Left: 9mm, Right: 7mm
Rolled Hem: 2mm |
Left: 7.5mm, Right: 5.5mm
Rolled Hem: 2mm |
Left: 7.5mm, Right: 5.5mm
Rolled Hem: 2mm |
Max Presser
Foot Lift |
8mm |
8mm |
8mm |
8mm |
Lower Looper
Threader |
Air Threaded |
Air Threaded |
Air Threaded |
Air Threaded |
Adjustable Presser
Foot Pressure |
Yes |
Yes |
Yes |
Yes |
Adjustable
Thread Tension |
Yes |
Yes |
Yes |
Yes |
Retractable
Upper Knife |
Yes |
Yes |
Yes |
Yes |
Adjustable
Lower Knife |
Yes |
Yes |
Yes |
Yes |
Automatic
Rolled Hemming |
Yes |
Yes |
Yes |
Yes |
Chain-off
Thread Cutter |
No |
No |
No |
Yes |
Automatic Thread
Supply System |
No |
No |
No |
Yes |
Waste
Collector |
Yes |
Yes |
Yes |
Yes |
Knee Lifting
Lever |
No |
No |
Yes |
Yes |
