Janome Memory Craft 550E Embroidery Machine 14x7.9

Machine Manual

All Compatible Accessories

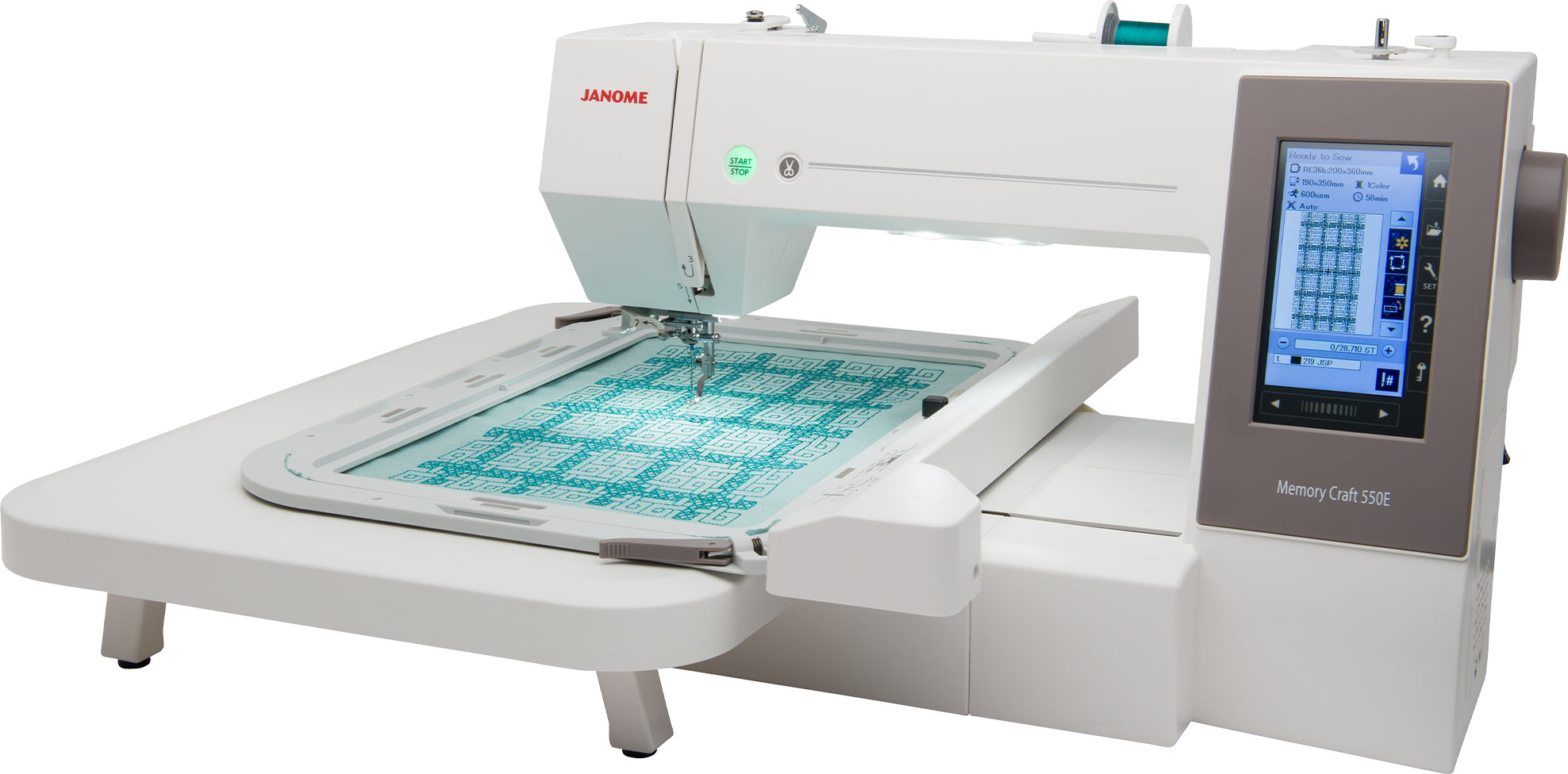

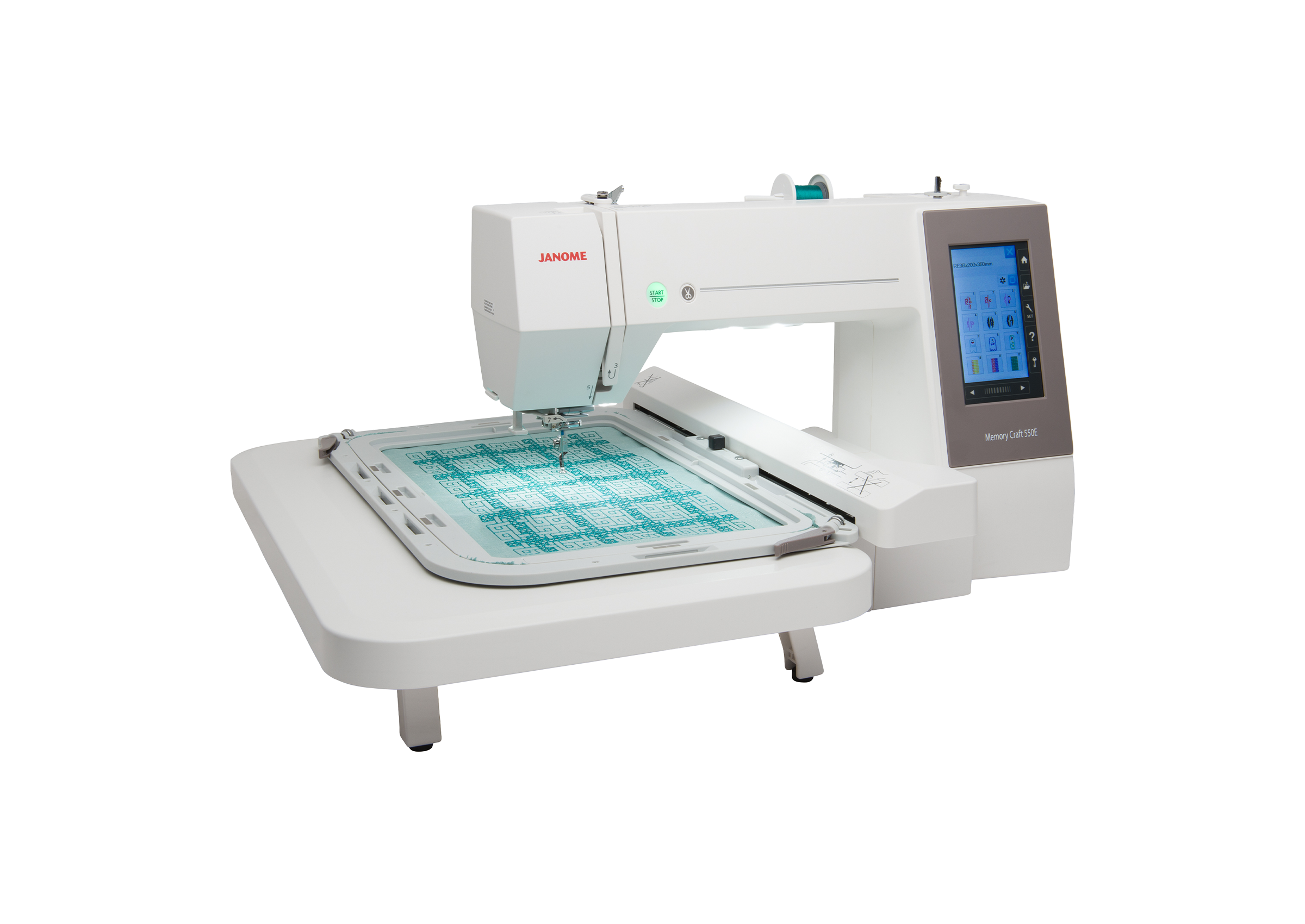

Janome's largest stand-alone embroidery machine, the Memory Craft 550E, is a perfect companion to your sewing machine. Personalizing your projects has never been easier or faster now that you can use the new RE36b hoop that provides an embroidery field of 7.9" x 14.2" with magnetic clips. Your built-in embroidery library contains 180 embroidery designs, that include classic designs, floral alphabets, in-the-hoop monsters and Sashiko designs. Add in 6 fonts, and the possibilities are endless. The MC550E comes with an extra wide extension table, four embroidery hoops, the already mentioned RE36b hoop, SQ20b 7.9" x 7.9", RE20b 5.5" x 7.9" and SQ14b 5.5" x 5.5".

Designs are easily imported through a USB and edited through the machine's advanced on-screen editing functions. Navigation through all of these features has become easier with the MC550E’s LCD color touchscreen.

Main Features
Larger Embroidery Area
The new RE36b hoop provides an embroidery area of 7.9" x 14"; it's the largest embroidery area Janome has ever included on an embroidery only machine! You can hoop bigger designs and refuce the number of re-hoopings so very large projects go faster.

Designs for Days

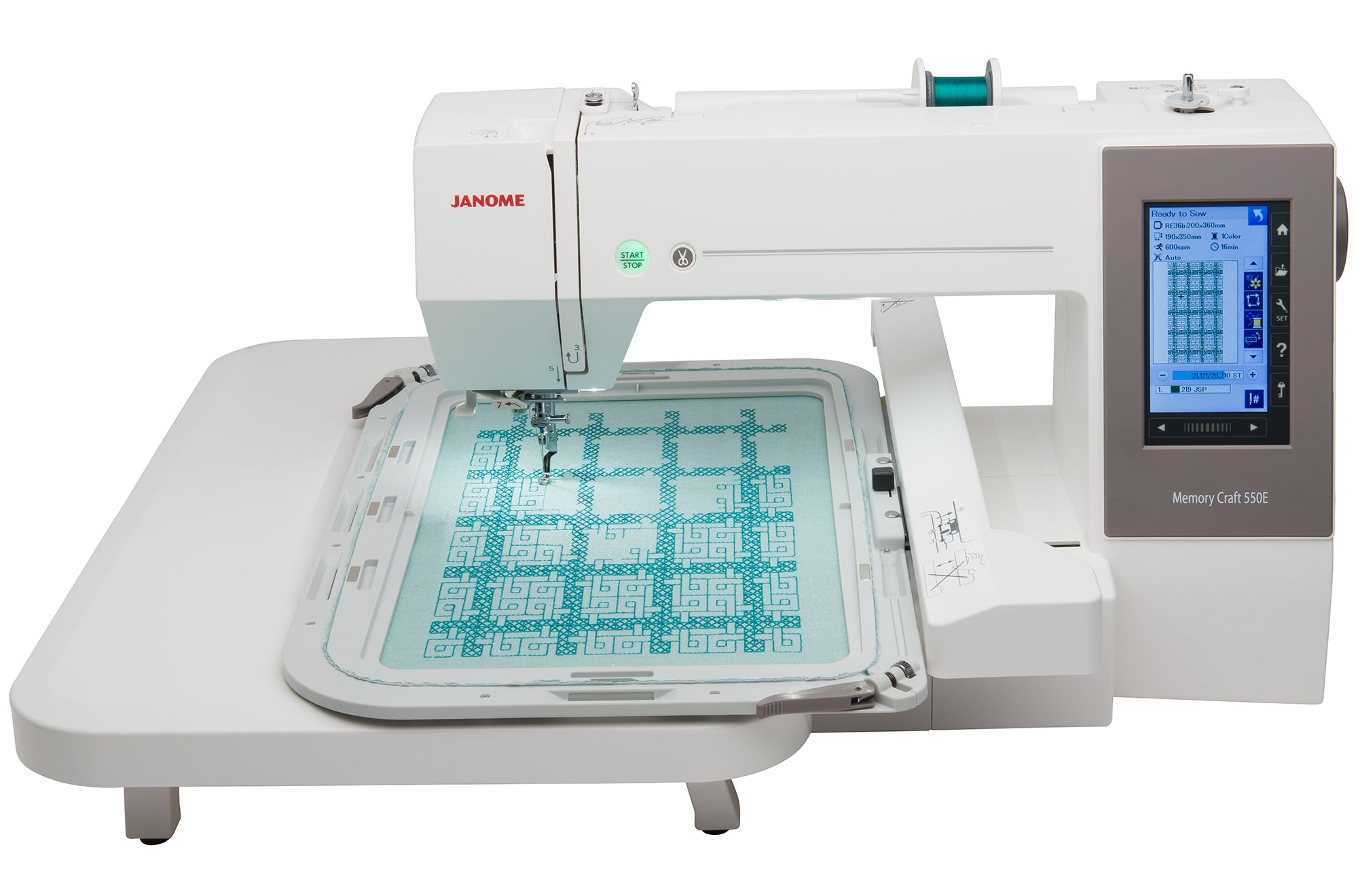

Designs are easily imported into the Janome MC550E through a USB or with a direct connection to your PC. Once in the MC550E, a design can be edited using the machine's advanced on screen functions. Navigation through all of these editing functions is naturally intuitive, and it's all easier to see thanks to the large LCD colour touch screen. There are 180 built in designs, including floral alphabets, in-the-hoop monsters, even Sashiko and wedding designs. Add in six fonts, and the possibilities are really limitless.

Four embroidery hoops total plus extension table
In addition to the new 7.9" x 14" RE36b hoop, the Janome MC550E also comes with the SQ20b 7.9" x 7.9" hoop, the RE20b 5.5" x 7.9" hoop, and the SQ14b 5.5" x 5.5" hoop. Plus the large extension table shown in the photos above also comes standard with the machine.

Basic Features

• Maximum embroidery size: 7.9” x 14.2” with magnetic clips
• 180 built-in designs
• 6 fonts for monogramming
• Anti-kink thread guide
• Patent pending hoop levers on RE36b hoop
• 2 and 3 letter monogramming
• Embroidery sewing speed: 400-860 SPM
• Flexible stitch traveling (by units of 1, 10, 100, 500)
• Auto return post thread break
• On-screen editing functions include enlarge/ reduce, rotate, flip, drag and drop, arc, combine, copy and paste, grouping, corner layout, single color sewing, zoom

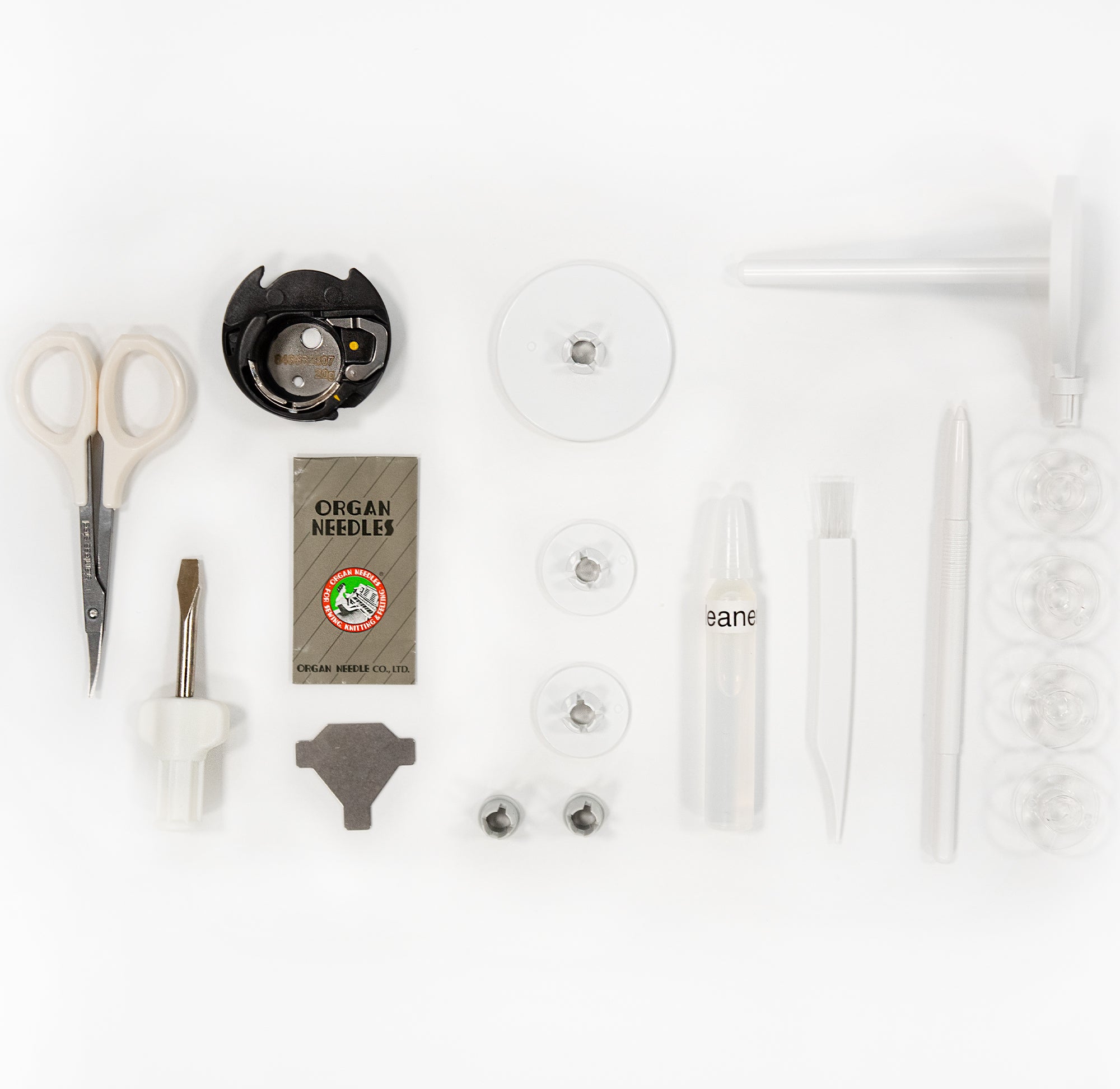

Accessories

• Bobbin Holder for Embroidery (High Tension)
• Embroidery Foot P
• Embroidery Hoop RE36b (200mm x 360mm)
• Needles
• RE20b Embroidery Hoop
• Seam Ripper
• SQ14b Embroidery Hoop
• SQ20b Embroidery Hoop

	Memory Craft 400E	Memory Craft 500E/500ELE	Memory Craft 550E/550ELE
Machine Type	Embroidery Only Machine	Embroidery Only Machine	Embroidery Only Machine
Maximum Embroidery Size	7.9 x 7.9"	7.9 x 11"	7.9 x 14.2"
Machine Weight	11.5 lbs	11.5 lbs	11.5 lbs
Work Space	W 12" x H 4.7"	W 12" x H 4.7"	W 12" x H 4.7"
# of Designs	160	160	180
# of Monogramming Fonts	6	6	6
Embroidery Speed	860 spm	860 spm	860 spm
Hook Type	Top Loading Full Rotary Hook Bobbin	Top Loading Full Rotary Hook Bobbin	Top Loading Full Rotary Hook Bobbin
Thread Tension Control	Automatic	Automatic	Automatic
Bobbin Winding	Bobbin Winder with Plate and Cutting Blade	Bobbin Winder with Plate and Cutting Blade	Bobbin Winder with Plate and Cutting Blade
Stitch Selection	Touchscreen	Touchscreen	Touchscreen
Needle Threader	Built-in	Built-in	Superior Needle Threader
Embroidery Format	.JEF	.JEF	.JEF, .JEF+, .JPX
Flexible Stitch Travelings	Units of 1, 10, 100	Units of 1, 10, 100	Units of 1, 10, 100, 500
Auto Return Post Thread Break	Yes	Yes	Yes
Adjustable Hoop Positioning	Yes	Yes	Yes
Adjustable Speed	Yes	Yes	Yes
Programmable Jump Thread Trimming	Yes	Yes	Yes
