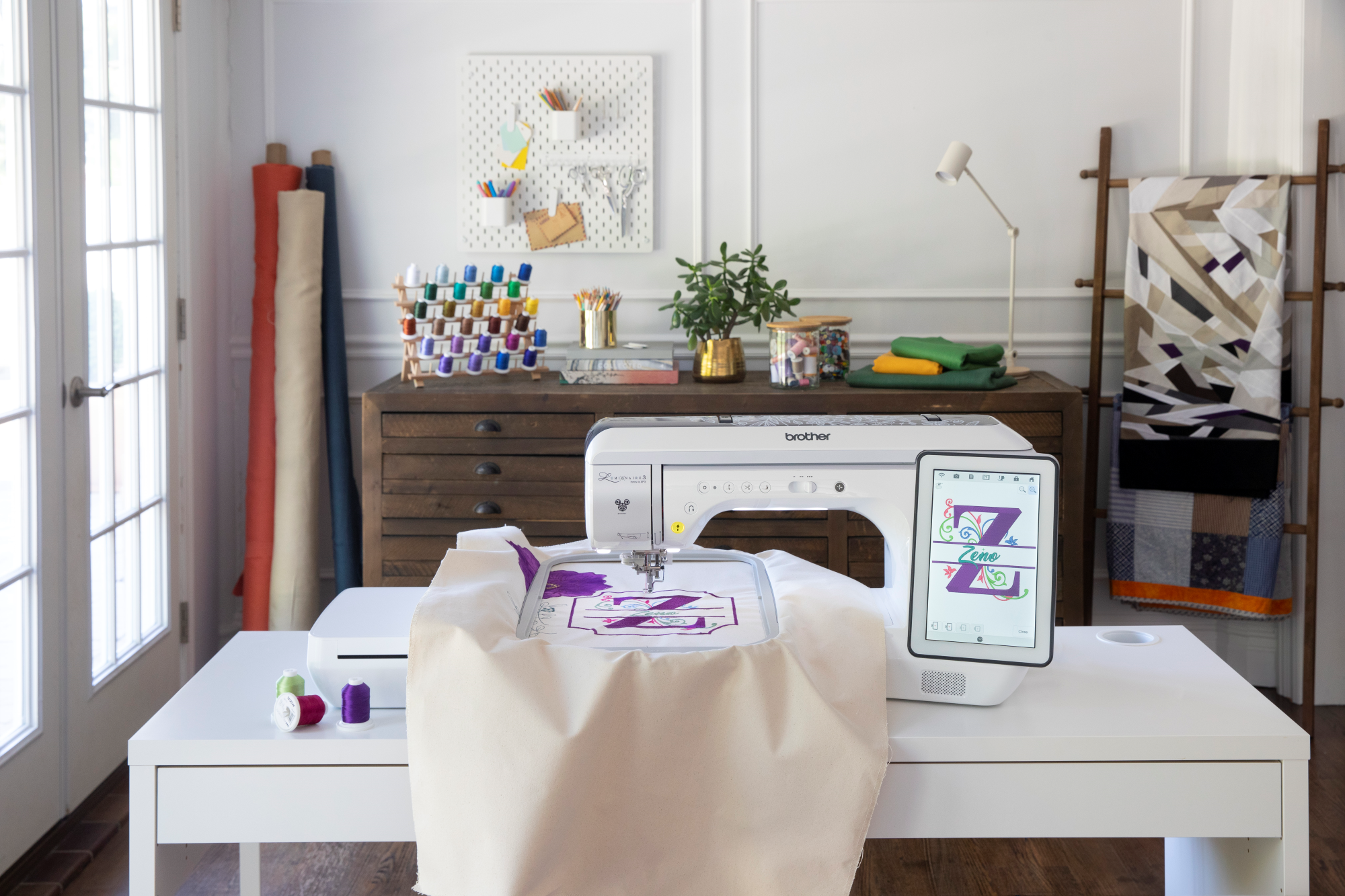

Brother Luminaire 3 Innov-is XP3 Sewing and Embroidery Machine 16x10.5

Revolutionary StitchVision Technology

Through an intelligent projection of light, the now enhanced and industry-first StitchVision Technology allows you to preview, audition, and edit your stitches and embroidery designs directly on your fabric. Experience more accuracy than ever before as stitches and embroidery designs can be projected right on your fabric.

The Luminaire XP3 takes embroidering to the next level with 1,554 built-in designs and StitchVision technology. Using the projection of light onto the fabric, StitchVision technology allows you to preview designs directly on your project before you embroider. This technology, coupled with the innovative Dual Purpose Stylus, makes adjusting your stitches more accurate than ever.

My Stitch Monitor Mobile App

Enable wireless LAN connectivity between your PC and the Luminaire 3 to keep track of your embroidery with the My Stitch Monitor mobile app on your iOS® or Android™ device. Walk away from your machine and be notified via your mobile device when you need to change threads or if your project has finished stitching!

Artspira Mobile App

A one-stop shop for embroidery and cutting designs so you can easily customize your next project. Design line-art-inspired drawings right in the palm of your hand with built-in embroidery drawing tools and optional stitch types (straight and zigzag stitch). With all these tools at your fingertips, design hand-drawn drawings up to 4" x 4" (100mm x 100mm) and 5" x 7" (130mm x 180mm) right on your mobile device and then transfer your creations to the Luminaire 3.

Stitch Tapering Function

Add a nice, professional taper to jeans, tops, and home décor. Simply choose the stitch you would like to use, the angle of the start and end of the taper, and the number of repeat stitches in the pattern cycle.

Ornate Long Stitch Technique

Use any of the 10 Long Stitch built-in designs to add a unique geometric enhancement to just about any project. This technique resembles string art with dramatic long stitches layered to create a unique embellishment.

Large Connect Designs

When you want to ‘go big’ on your next embroidery project, the five built-in large connect embroidery designs are a great starting point. Select from ornate flowers, birds, and other elaborate designs that range from 721mm x 383mm (28" x 15") and when combined, allows you to create a large ensemble.

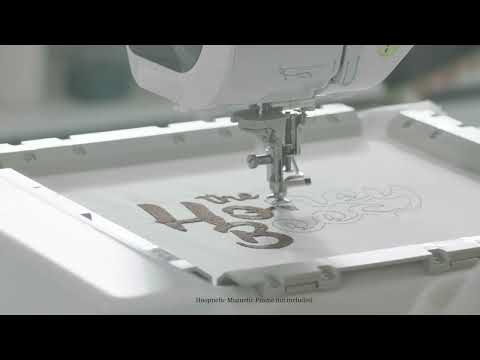

Creative Yarn Couching

Enhance your creations with a new technique so you can embroider “letters.” When you fill in the characters using yarn (the color of your choice), you give it a 3D effect. You can use upper case letters, (approx. 3” tall), lower case, numbers, and all characters are also resizable for even more flexibility.

65 Square Inches of Workspace

With the powerful combination of the large 65 square inches of workspace – the largest of any Brother machine – and the generous 13.1" needle to arm span, projects of any size are easily managed. Brother's largest needle to arm is a dream for any sewer, embroiderer, crafter or quilter, with the ability to easily accommodate a rolled king-size quilt.

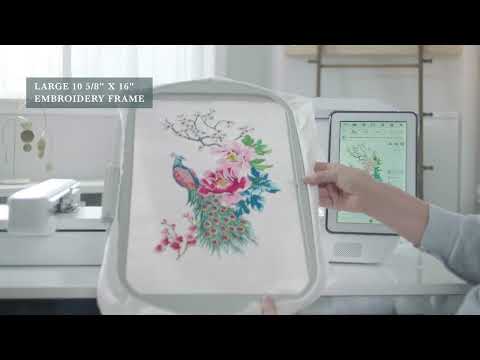

The 10 5/8" x 16" frame – the largest that Brother currently offers – has efficient rubber plates on both sides of the inner frame to hold fabric securely, along with an inventive Spring Lever Release for ease of use. Never use clamps again!

Built-in Embroidery Designs and Sewing Stitches

A one-stop shop for embroidery and cutting designs so you can easily customize your next project. Design line-art-inspired drawings right in the palm of your hand with built-in embroidery drawing tools and optional stitch types (straight and zigzag stitch). With all these tools at your fingertips, design hand-drawn drawings up to 4" x 4" (100mm x 100mm) and 5" x 7" (130mm x 180mm) right on your mobile device and then transfer your creations to the Luminaire 3.

Quiltbroidery

Want to add some embellishments to your quilts? The Luminaire 3 has five options of two-color quilting sash designs, perfect for eye-catching, colorful borders. Building upon the sensation of the auto-split designs, enjoy five hexagon shapes to give you more options and then choose from either single or triple stitch for quilt sashing to let your stitches stand out on your projects. We call it “Quiltbroidery!”

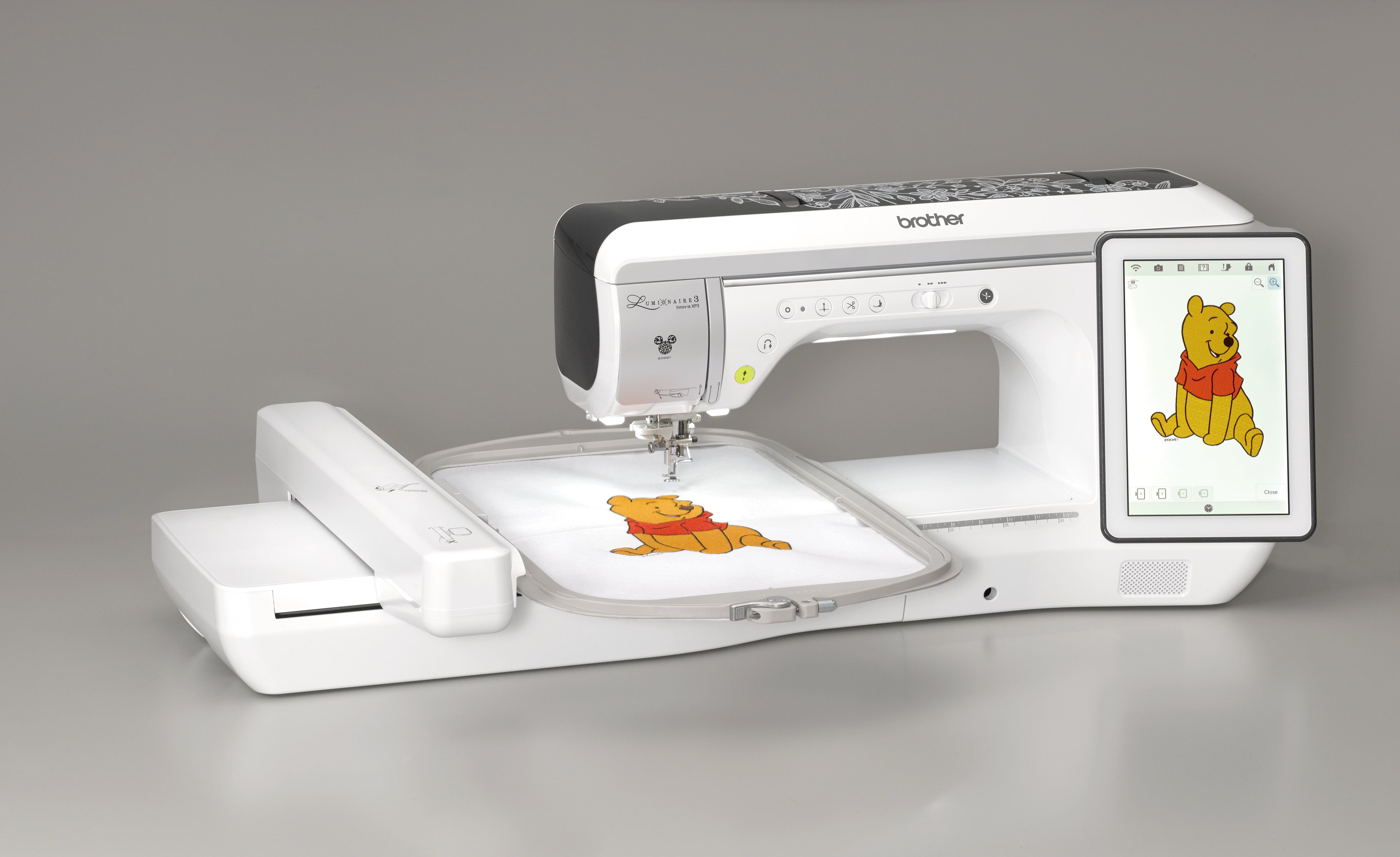

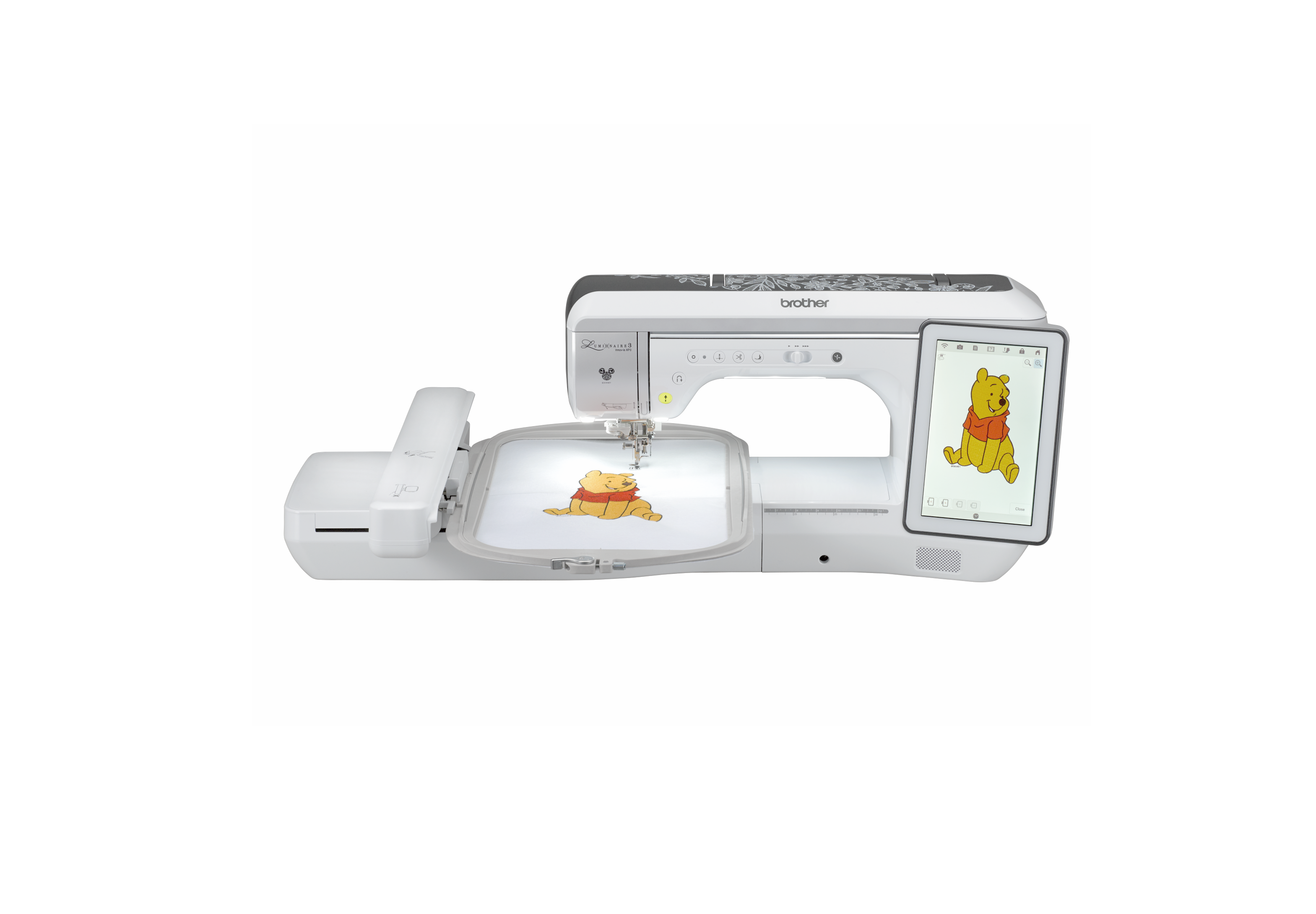

Disney Designs and Stitches

The Luminaire 3 has the magic of 192 built-in Disney embroidery designs and 10 decorative Disney stitches. Additionally, access exclusive Disney and Disney·Pixar embroidery designs through the iBroidery.com Download Center. (Additional purchase required)

Enhanced Innoveye Plus Technology

It's like having a built-in camera and scanner! The ability to scan the entire embroidery area provides virtually endless creative options and helps ensure that all your projects are perfect.

End Point Sewing Function

Utilizing the built-in camera-like feature in the InnovEye Plus Technology, you can stop your stitch in the perfect place by just placing the Snowman End Point Sewing Sticker on your project.

Snowman Embroidery Positioning Marker

Pair with InnovEye Plus Technology to automatically position the design for precise embroidery placement. Choose from nine options for alignment of embroidery designs.

Guideline Marker Line and Grid

When creating miltered corners, sashing strips, Y seams, diamond cross hatching, or square corners, use the projector to prreview your angle lines. The 5" x 3" virtual preview area also displays a guideline marker in single, double, angled, or gridlines.

10.1" HD LCD Touchscreen

The simple and intuitive 10.1" capactitive touchscreen works like a tablet with familiar sliding, swiping, scrolling, and pinch-to-zoom for viewing detailed steps, categories and designs. The user interface offers large, defined crystal-clear icons, plus color navigation for easy viewing.

My Connection Feature

When connected to a wireless network, send files back and forth between your Luminaire 3 and select ScanNCut DX machines for added efficiency. Choose any non-Disney embroidery design in the Luminaire 3, follow the steps in the My Connection feature, and transfer to the ScanNCut DX. When the design or pattern is sent from the ScanNCut DX to a Luminaire 3, it can be retrieved in My Design Center. This feature takes the place of using a USB to transfer designs between machines and is exclusive to the ScanNCut Innov-ís Edition ScanNCut DX SDX325 and the Limited-Edition Disney Innov-ís Edition ScanNCut DX SDX330D.

Design Database Transfer Software

Transfer embroidery designs from a PC to your Luminaire 3 when connected to a wireless network. No USB required. Plus, when you pair your Luminaire 3 with PE-DESIGN 11, you can send edited designs back and forth, in both directions, between the computer and the machine.

Basic Features

Sewing Features

Embroidery Features

Dual Purpose Stylus

Use the innovative Dual Purpose Stylus to make adjustments to your stitches directly on your fabric for even more accuracy than ever before. Adjust your stitch width, length, and left/right shift using the revolutionary stylus.

Multi-Function Foot Controller

Redesigned to be ergonomic to the foot and accessible for toggle functions, the Multi-Function Foot Controller has updated the heedl and toe kick angle and reduced the spring load of the main pedal for easier stepping and load reduction. In addition, there is a handy cord storage solution and an easy-adjust stlot on the back of the pedal.

Compact MuVit Digital Dual Feed Foot

Allows for the smoother feeding and the ability to stitch thicker fabrics with ease. Continual contact with the material ensure ssteady stitching and the capability to stitch forward and backward.

Four Included Frames

Embroider monograms and other small designs with the 4" x 4" frame. Use the 5" x 7" frame for clothing embellishment or choose the 10 5/8" x 10 5/8" hoop for qulits and jacket backs. Accomodate your largest designs on the 10 5/8" x 16" frmae - Brother's largest frame to date!

17 Different Sewing and Embroidery Feet

Choose from a wide array of presser feet, including a free motion quilting "C" foot, a free motion echo quilting "E" foot, a 1/4" piecing foot for effortless quilting, the Compact MuVit Digital Dual Feed Foot, Monogramming Foot N+, Zigzag Foot, and Embroidery Couching Foot for even more creative freedom.

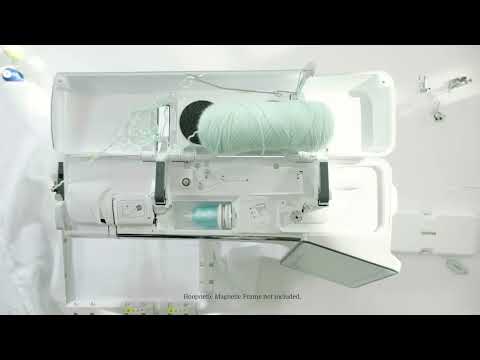

Dual King Spool Thread Stand

Need more room for more thread? Create more work space with a flip of the lid. Easily attach the included magnetic stand, which can fit two king sized spools of thread. This space-saving, innovative stnad helps ensure proper thread delivery, and also helps prevent broken distorted stitches and uneven tension.

Accessory Case

Designed to fit within the arm of the Luminaire 3, the accessory case will keep all of your tools neatly organized and out of your way when not in use.

Straight Stitch Needle Plate

Easily and quickly switch your needle plate for sewing or quilting with a simple press of a lever - no screwdriver needed.

Adjustable Presser Foot Knee Lifter

Adjust the lever in three angles for your ideal sewing position. Adjust the presser foot in four different heights.

All Included Accessories
