JUKI J-150QVP Sewing Machine

Also Available in Our Retail Store
Call for More Information or Special Promotions

Machine Manual

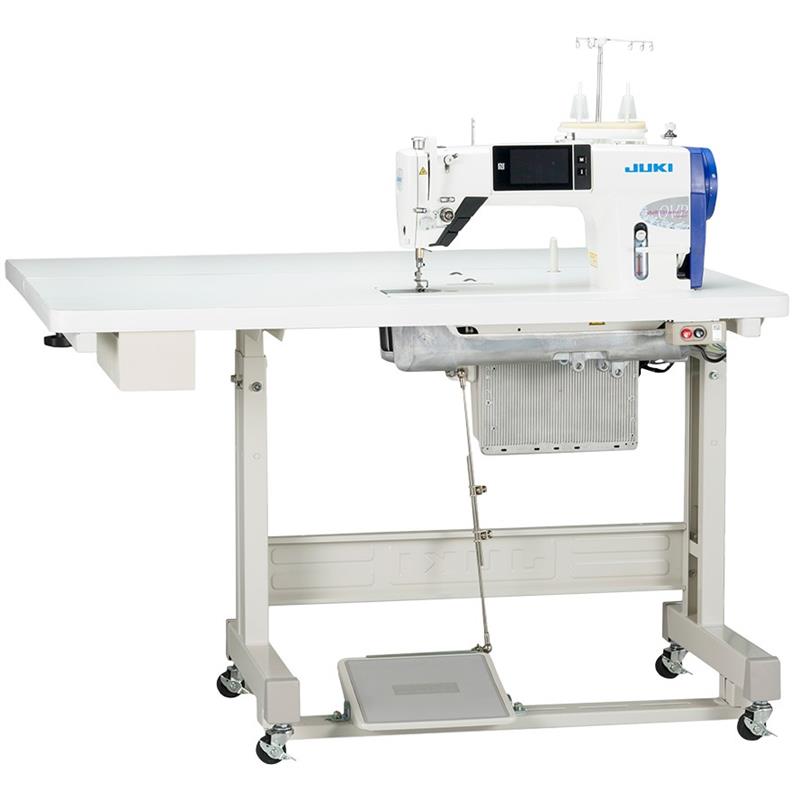

Experience JUKI’s high-speed free motion quilting and sewing machine with digital technology, the J-150QVP. With a maximum sewing speed of 2,500spm, this whisper-quiet and durable machine allow you to finish with precision. The J-150QVP is equipped with features that allow you to make your sewing goals a reality! The generous 12” wide throat allows you to sew and quilt with spatial comfort. Change from sewing to quilting in 2 easy steps! First, change the presser foot, then press the switch function on the LCD panel. Change more features digitally like the tension, speed, box feeding system, lock/backstitching, and more! With features like these, the J-150QVP is perfect for getting that finished product you want!

Main Features
Large Work Surface
The generous 12” wide throat space allows you to finish big projects with ease.

Custom Switches
Two easily accessible switches (A and B) can be assigned for operations, for example, needle up and down or raising the presser foot.

Independent Bobbin Winder
The QVP’s bobbin winder operates with an independent motor. Full capacity L size bobbins filled with your favorite thread ready to complete your project.

One-Touch Switching to Free Motion Mode
The machine is equipped with a button for switching between straight stitch mode and free motion mode.

Micro-Lifter Function
By inputting a negative value for the presser foot pressure, fabric can be sewn with the presser foot floating at a height of 0 to 4mm. This helps when sewing thick seams and reduces uneven feeding when quilting.

Digitally Controlled LCD Panel
Adjust settings, for example, stitch length, thread tension, presser foot pressure with the touch of a button. Settings can be confirmed and specified from this large panel.

Bobbin Thread Counter
With the count changing by one for every 10 stitches sewn, the counter can be used as a guide for when to replace the bobbin thread.

Four Feed Operation Types
From the operation panel, you can select the appropriate feed operation for the item being sewn: standard for normal fabric, front up for thin fabric or knits, rear up for thick fabrics, and box feed for quilting.

Adjustable LED Light
Using an easily accessible switch, the brightness can be adjusted to one of five levels.
Easily Insert and Remove Thick Fabrics: When the presser foot is raised, the feed dog is automatically lowered. In addition, the presser foot can be raised to a height of up to 13.5mm allowing thick fabrics to easily be inserted and removed.

Maintenance-Free
Fill oil tank through the filler opening at the front of the sewing machine to ensure that the hook is automatically lubricated.

Main Features

• Sewing Speed: Max. 2,500 spm
• Max. Stitch Length: 5mm
• Needle: DBx1 #9-#18
• Bobbin: "L" style
• Working Area: 5.5” w x 12” h
• Machine Weight: 26 kg (57lbs)
• Main Table: 48” w x 22” h
• Extension: 48” w x 20” h
• Total Work Area: 48” x 42” h

Accessories
