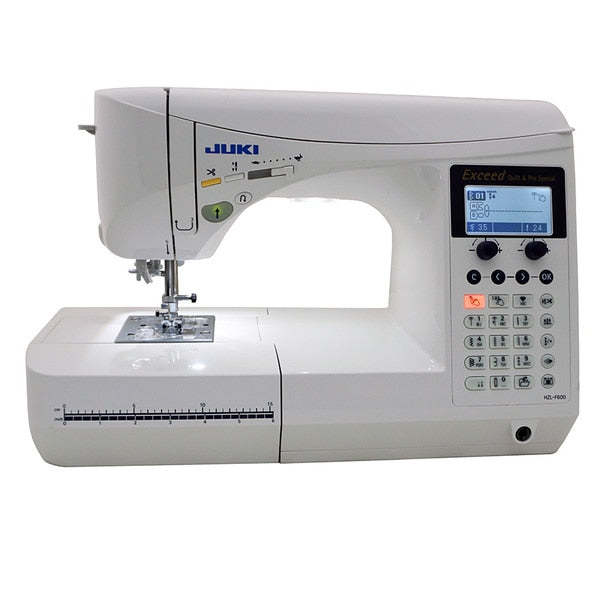

JUKI Exceed HZL-F600 Quilting Machine

Also Available in Our Retail Store
Call for More Information or Special Promotions

Machine Manual

The Juki HZL-F600 has included numerous features to ensure you get amazing stitch quality every time. No matter if you’re a beginner or a sewing pro, you’ll be able to complete your garments, home décor projects and quilting projects with professional results every time. The Juki HZL-F600 gives you the option to select frequently used stitches and patterns through the touch panel. You can access the other 225 stitch and pattern choices through the LCD screen and navigation keys.

Like other Juki machines, the HZL-F600 uses the Juki “box feed” for consistent fabric feeding that results in even stitching. This machine offers free motion sewing as well for those who want to get creative with quilts. The presser foot can be lifted using the traditional lever or the knee lever on the back of the machine. If the knee-lift lever is used, presser foot can be raised up to 12mm to accommodate the extra thick layers of your project.

There are 16 types of button-holes that can be created on the Juki HZL-F600 with the sensor method on this machine. It also has an automatic threader to help you easily thread your needle and an auto trimmer for your threads when you need it. The trimmer can be triggered with a button on the body of the machine or with the heel portion of the machine’s foot controller. The LED lighting system with 2 bright lights makes it easy for you to see every fine detail of your machine and the project you're sewing. There are 29 included accessories with your purchase of the Juki HZL-F600, among them a hard cover to protect your machine and a wide extension table for larger projects.

Main Features
Direct Stitch Pattern Selection
Frequently used stitch patterns can be selected directly through the Direct Select mode. Piecing, Applique, Blanket stitch for applique, Overlocking, Invisible Hemming, Stretch Stitch and more all at the touch of a button. Stitch settings, patterns and recommendations for the best presser foot can all be seen on the machine's LCD screen display. The keypad allows you to quickly and easily select lettering and to adjust settings. Stitch can be adjusted with just the turn of a dial!

Customization and Control
Combine decorative stitches and lettering into new sequences. You can save up to 70 patterns! You can program the needle up/down position, automatic thread trimming, and foot control trimming with just the push of a button. Also set the contrast of the LCD screen, change the volume of the machine buzzer, select from 8 different language settings, and use the on-board sewing guide when you need a little help.

Industrial Strength Sewing Technology
The Juki industrial "BOX Feed" system has been brought to the home sewing machine. Our BOX Feed allows you to create perfect high-quality stitches on all types of fabrics. The BOX Feed system stays in contact with your fabrics longer for a consistent, reliable seam every time.

Capable of Sewing a Width Range of Fabrics
Thick fabrics can be sewn with ease. Leather, denim, and canvas are no problem for this machine. No fabric shrinkage even while sewing on extra lightweight materials.

Industrial Quality Buttonholes
Using a unique sensor method, HZL-F series sews beautiful buttonholes regardless of the type of material and overlapped sections. 16 types of buttonholes are available for your needs. Now it is possible to adjust the cutting width of the buttonholes in 3 steps.

Foot Controller with Thread Trimming Function
HZL-F series trims both needle and bobbin threads automatically by pressing the heel side of the foot controller. It is also possible to trim threads with a button located at machine body. With this feature you can concentrate on your project while automatically cutting the thread!

Perfect Stitch and Needle Placement
The Exceed series now has a feature that allows you to move the position of a complete pattern without changing the width, as well as variable needle positions that allows you to place the needle anywhere you want.

Wide Sewing Space
HZL-F series has a wider underarmspace, with a wider table. It is more enjoyable and comfortable to work with large projects.

Knee-lifting Lever
Presser foot can be raised and lowered by the knee-lifting lever. You now can have both hands free when trying to line up those hard to handle fabrics. The presser foot lift is up to 12 mm when the lever is used.

Accessories

• Blind Stitch Presser Foot
• Buttonhole Presser Foot
• Edge Sewing Presser Foot
• Manual Buttonhole Presser Foot
• Open Toe Presser Foot
• Overcasting Presser Foot
• Patchwork Presser Foot
• Quilt Presser Foot
• Smooth Presser Foot
• Standard Presser Foot
• Walking foot
• Zipper Presser Foot
• Hard Case
• Wide Table
• Knee Lift Lever
• 4 Bobbins
• Eyelet Punch
• Quilt Guide
• Small, Medium, and Large Spool Caps
• T-shape Screwdriver
• Auxiliary Spool Pin
• Seam Ripper
• Twin Needles
